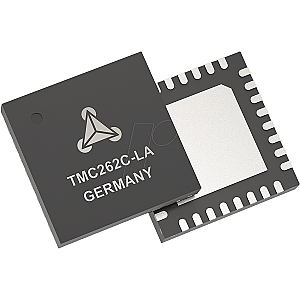

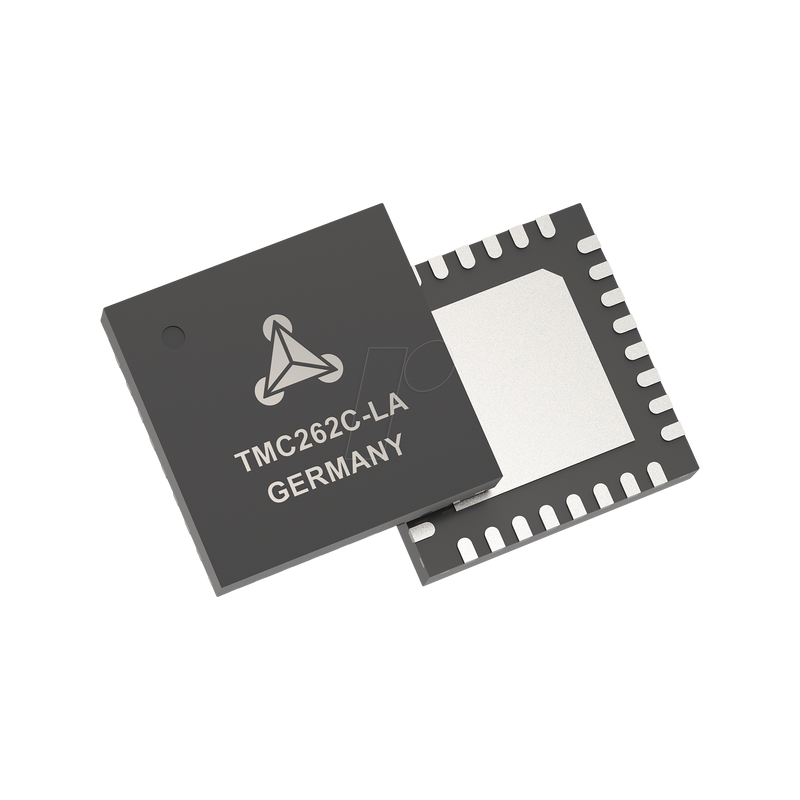

TMC262 Driver pre-stage

The TMC262 is an integrated stepper motor solution for Laboratory Automation, 3D-Printing, Scanners and other automated equipment applications. The device is capable of driving up to a gate current of 40mA and is powered by Trinamic StallGuard2™, CoolStep™, SpreadCycle™, MicroPlyer™ technology. TMC262 is designed for a supply voltage of 9...60V. The device provides a SPI and S/D interface.

The new TMC262C improves motor silence and adds low side short protection. The C-version is recommended for new designs.

Features
- High Motor Current up to 10A using external (N&P) MOSFETs.
- Highest Voltage up to 60V DC operating voltage
- Highest Resolution up to 256 microsteps per full step
- Small Size 5x5mm QFN32 package
- Low Power Dissipation synchronous rectification
- EMI-optimized slope & current controlled gate drivers
- Protection & Diagnostics short to GND, overtemperature undervoltage; short to VS & overcurrent (TMC262C only)
- StallGuard2™ high precision sensorless motor load detection
- CoolStep™ load dependent current control saves up to 75%
- MicroPlyer™ 256 microstep smoothness with 1/16 step input.
- SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
- Improved Silent Motor operation (TMC262C only)
- Clock Failsafe option for external clock (TMC262C only)
