The LAN8740A/LAN8740Ai is a low-power 10BASE-T/100BASE-TX Physical Layer (PHY) variable I/O voltage transceiver that complies with IEEE 802.3, 802.3u and 802.3az (Energy Efficient Ethernet) standards. Support for Energy Efficient Ethernet (EEE) results in significant power savings with low connection utilisation.
Main features
- Single-chip Ethernet Physical Layer Transceiver (PHY)
- Conforms to energy-efficient Ethernet 802.3az
- Support for cable diagnostics
- Wake on LAN (WoL) support
- Extensive flexPWR technology
- Flexible power management architecture
- LVCMOS variable I/O voltage range: +1.8 V to +3.3 V
- Integrated 1.2-V controller with deactivation function
- HP Auto-MDIX support
- Small, RoHS-compliant 32-pin VQFN
Housing (5 x 5 x 0.9 mm height)
- Deterministic 100-Mb internal loopback latency (MII mode)
In stock
SKU LAN8740A-EN

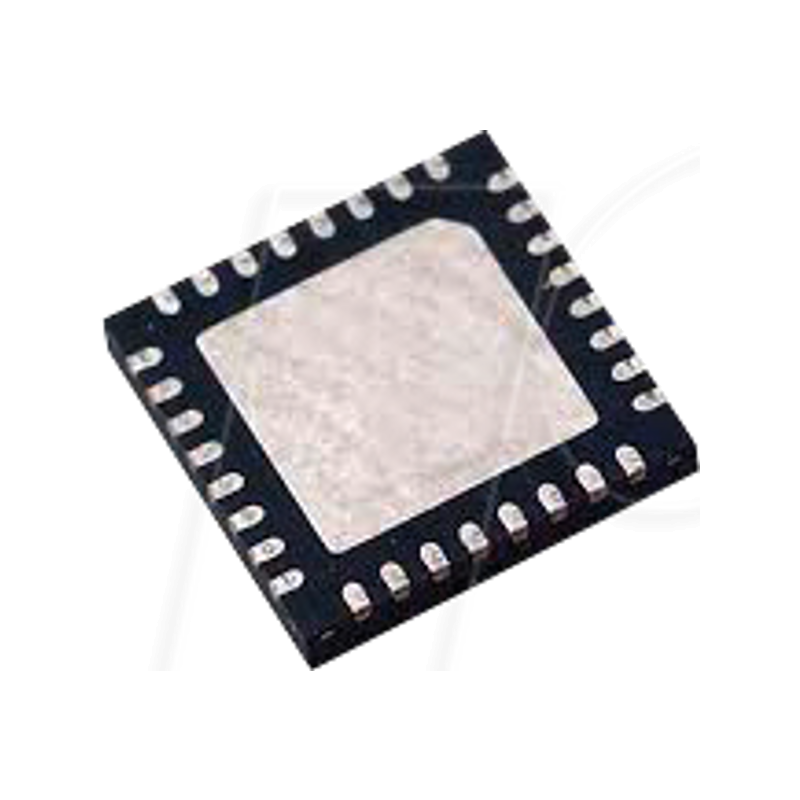

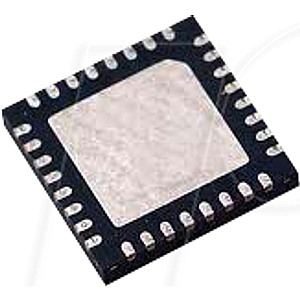

Transceiver, 10/100Base-T, PHY, QFN32
MPN LAN8740A-EN
Manufacturer MICROCHIP
€3.01
incl. 19% VAT · €2.53 excl. VAT
Package
QFN-32
Specifications
General
Model
Ethernet
Type
Transceiver
Design
PHY
Mounting form
QFN-32
Technology
10/100
Electrical values
Supply voltage
3.3 VDC
Temperature coefficient
d
Interfaces
Interface
RMII, MII
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
LAN8740A-EN
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900004063371
HS-Code
85423990
