Switch for CTV receivers
Housing: DIL-18

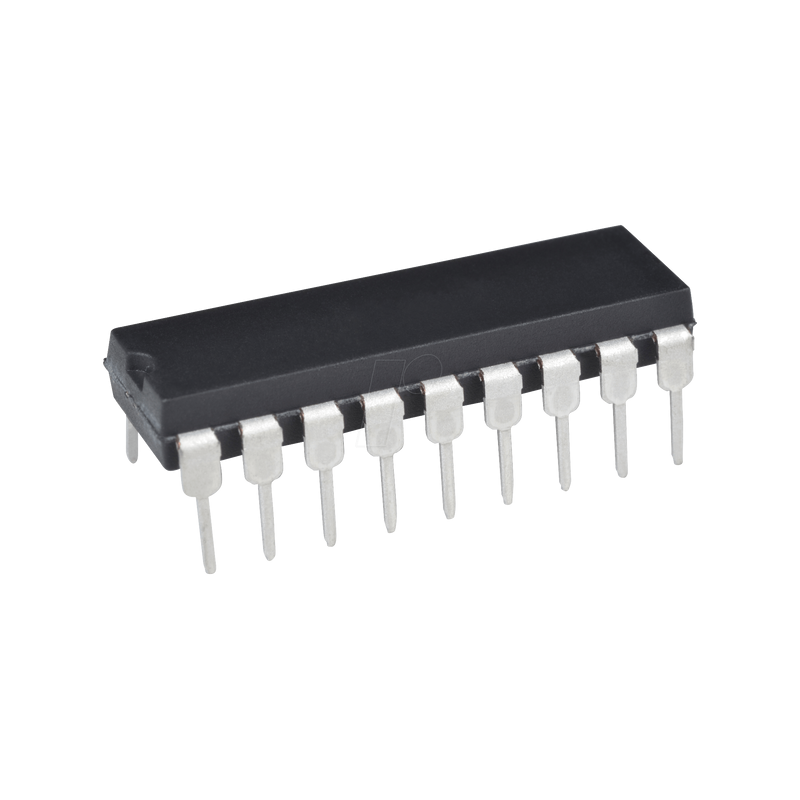

TV-IC, DIL-18
€2.28TDA 8440
Technical information
| General | |
|---|---|
| Model | Switch |
| Type | Audio / video |
| Design | For CTV receivers |
| Technology | I²C Bus |
| Mounting form | DIP-18 |
| Other | |
| Temperature range | 0 ... +70 |
| Electrical values | |
| Supply voltage | +10.8 ... +13.2 VDC |
| Input Resistance | 0.1 M-Ohm |
| Power Bandwidth | 50 kHz |
| Quiescent Current | 37 mA |
| Suppley Voltage Rejection | 36 dB |
| Distortion | 0.1 % |
| Manufacturer specifications | |
| Manufacturer | NXP |
| Manufacturer ID | TDA8440 |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900000210649 |
| HS-Code | 85423990 |
