Horizontal and vertical deflection circuit
Housing: DIL-20
In stock
SKU TDA 8215B

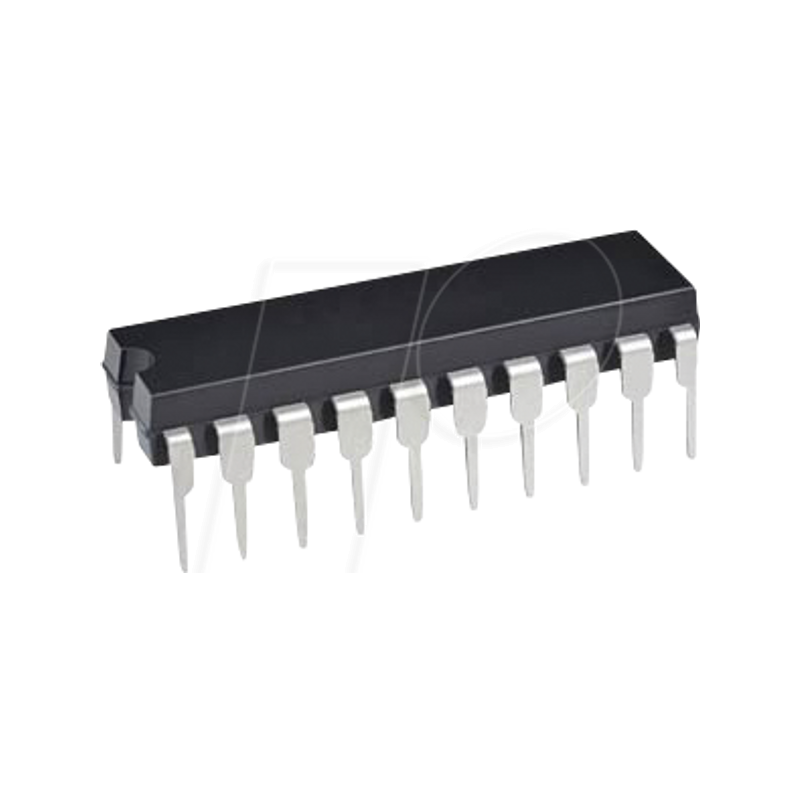

TV-IC, DIL-20
MPN TDA8215B
Manufacturer STMICROELECTRONICS
€3.28
incl. 19% VAT · €2.76 excl. VAT
Package
DIP-20
Specifications
General
Model
Deflection system
Type
Vertical/horizontal
Mounting form
DIP-20
Other
Temperature range
0 ... +70
Electrical values
Supply voltage
+9 +10,5 VDC
Output Current
1 A
Input Resistance
0,0058 M-Ohm
Input Bias Current
0.1 µA
Quiescent Current
15 mA
Manufacturer specifications
Manufacturer
STMICROELECTRONICS
Manufacturer ID
TDA8215B
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900000210359
HS-Code
85423990
