In stock SKU TDA 8172

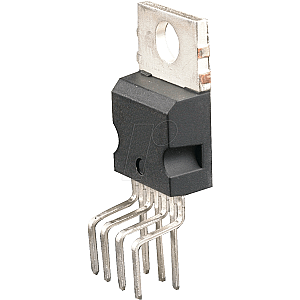

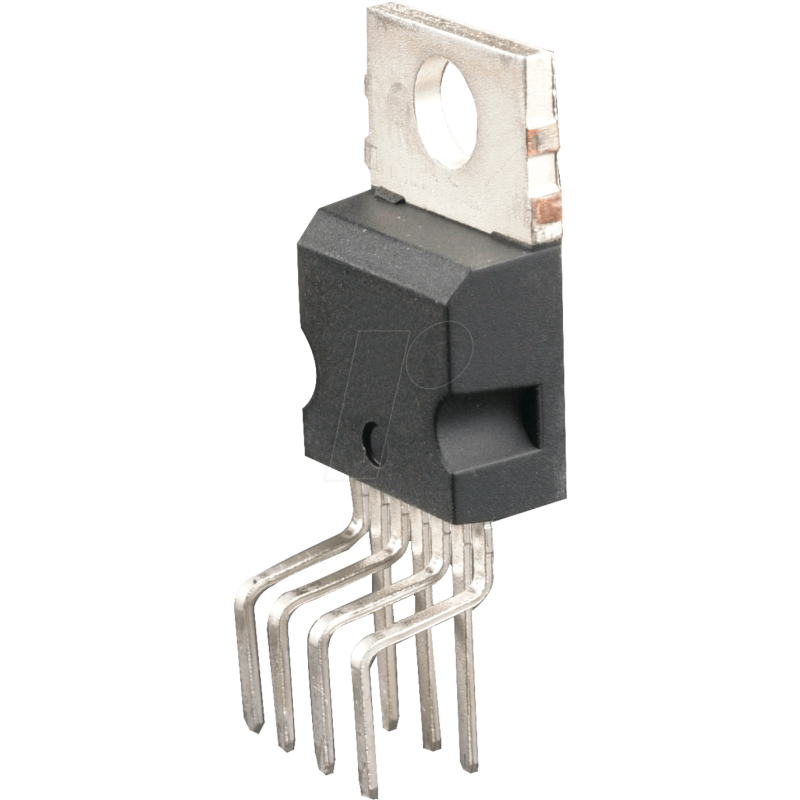

TV-IC, Heptawatt-7

MPN TDA8172 Manufacturer STMICROELECTRONICS

€1.57

incl. 19% VAT · €1.32 excl. VAT

Package

Heptawatt-7

Specifications

General

Model Deflection system

Type Vertical

Design With amplifier

Mounting form Heptawatt-7

Other

Temperature range -40 ... +150

Electrical values

Supply voltage +35 VDC

Output Current 2 A

Input Bias Current -1 µA

Quiescent Current 16 mA

Power loss 20 W

Manufacturer specifications

Manufacturer STMICROELECTRONICS

Manufacturer ID TDA8172

Weight 0.002 kg

RoHS conform

EAN/GTIN 9900000210236

HS-Code 85423990

↓ A200/TDA8172~STM.pdf

TV vertical deflection output circuit
Housing: Heptawatt-7
