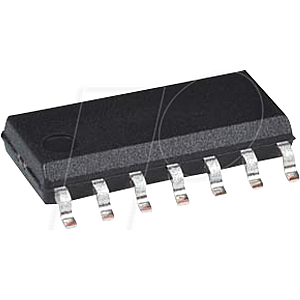

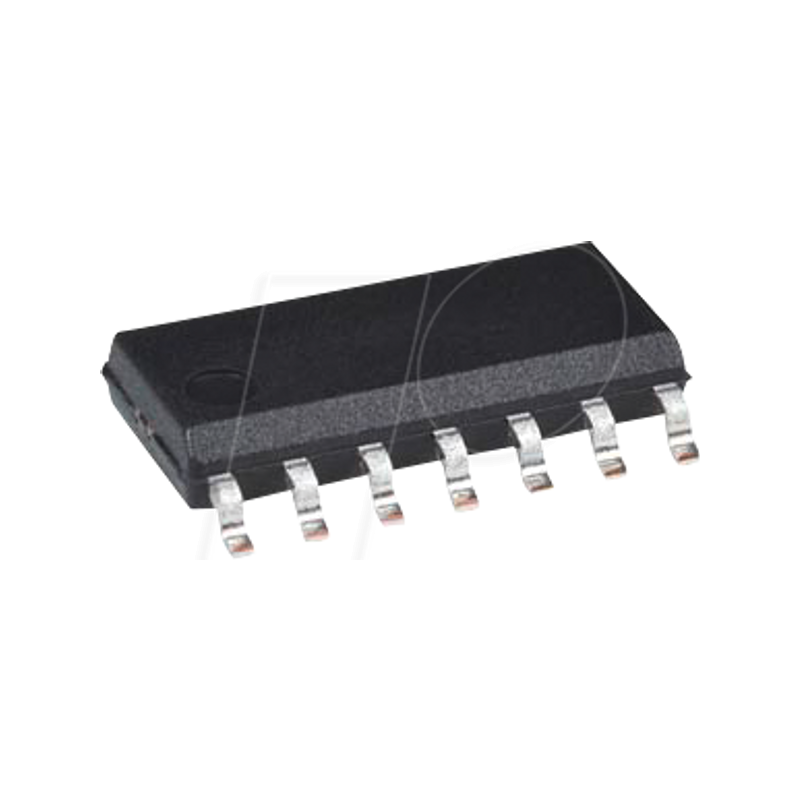

U/I converter, 4 ... 20 mA, SO-14

U/I converter SO-14, XTR105PA, Texas Instruments, outputs 4...20 mA, supply voltage 7.5...36 V.

Technical data:
• Outputs: 4...20 mA
• Supply voltage: 7.5…36 V.
• Housing: DIL-14
• Description: RTD Excitation, with power source
• SVHC: YES SVHC

Family Information:
• XTR 101: Two-wire transmitter, low drift
• XTR 105: Linearized current transmitter for RTD control with two precision current sources (800 µA)
• XTR 106: Linearized current transmitter for bridge control with reference voltage 2.5 / 5 V.
• RCV 420: Precision current-loop receiver with reference voltage of 10 V.
