The XTR111 is a precision voltage-to-current converter designed for the standard 0mA - 20mA or 4mA - 20mA analog signals, and can source up to 36mA. The ratio between input voltage and output current is set by the single resistor R SET . The circuit can also be modified for voltage output.

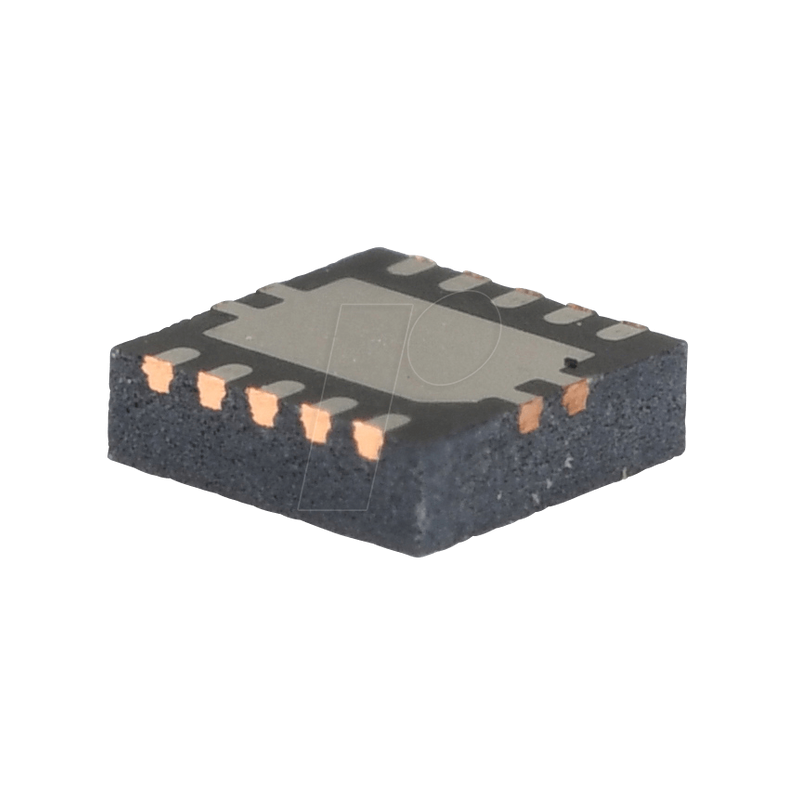

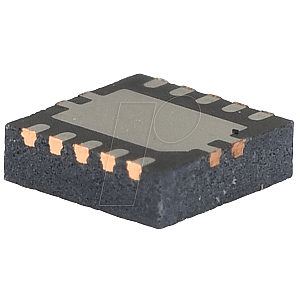

U/I converter IC VSON-10
€3.16XTR 111 AIDRCT
- Model
- XTR111AIDRCT
Technical information
| General | |
|---|---|
| Model | U/I converter |
| Type | 0 - 20 mA |
| Mounting form | VSON-10 |
| Other | |
| Temperature range | -40 ... +85 |
| Electrical values | |
| Supply voltage | +8.0 ... +40 VDC |
| Input voltage | 0 - 12 VDC |
| Output Current | 4 - 20 / 5 - 25 mA |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | XTR111AIDRCT |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900001887703 |
| HS-Code | 85423990 |
