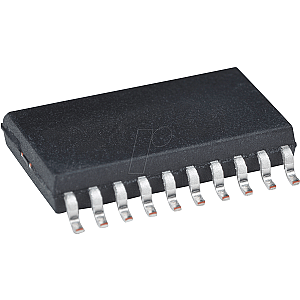

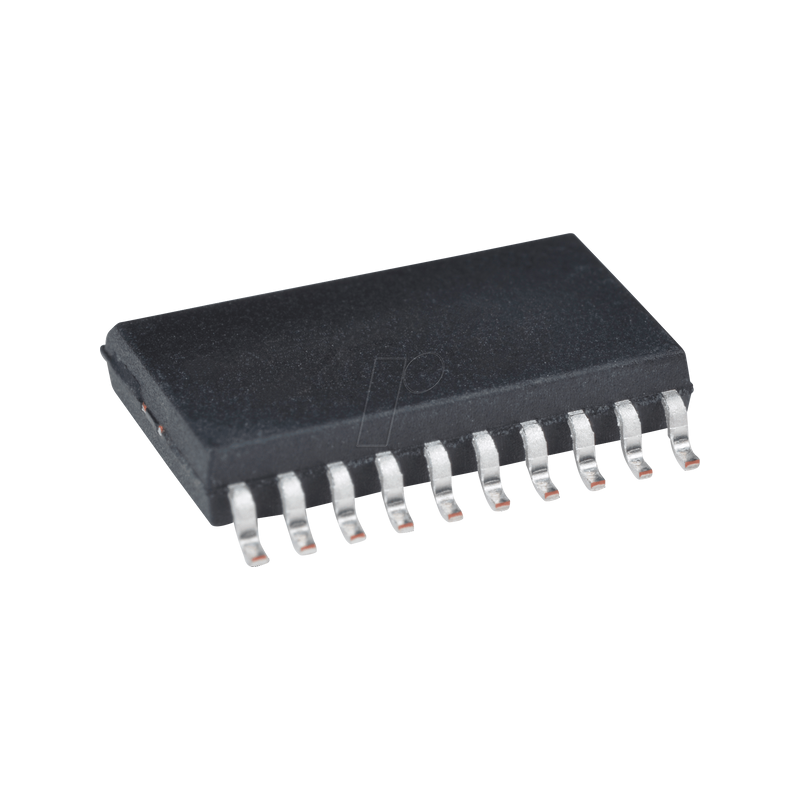

USB 2.0 to UART protocol converter, SO-20

USB 2.0 to UART Protocol Converter with GPIO

Description:
The MCP2200 is a USB-to-UART serial converter which enables USB connectivity in application that have a UART interface. The device reduces external components by integrating the USB termination resistors. The MCP2200 also has 256-bytes of integrated user EEPROM. The MCP2200 has eight general purpose input / output pins. Four of the pins have alternate functions to indicate USB and communication status.

Features:

a. Universal Serial Bus (USB)
- Supports Full-Speed USB (12 Mb/s)
- Implements USB Protocol Composite Device CDC Device (communications and control).
- Class 02h - CDC: USB-to-UART communications and I/O control
- Class 03h - HID: I/O control, EEPROM access, and initial configuration
- 128 byte buffer to handle data throughput at any UART baud rate.
- 64 byte transmit
- 64 byte receive
- Fully configurable VID and PID assignments, and string descriptors
- Bus Powered or self powered USB Driver and Software Support
- Royalty-free drivers for Virtual Com Port (VCP)
- Windows XP(SP2 and later)/Vista/7
- Configuration utility for initial configuration

b. Universal Asynchronous Receiver/Transmitter (UART)
- Support baud rates: 300 - 1000k (baud)
- Hardware flow control
- UART signal polarity option General Purpose Input/Output (GPIO) Pins
- Eight (8) general purpose I/O pins

c. EEPROM
- 256 bytes of user EEPROM

d. Other
- USB activity LED outputs (TxLED and RxLED)
- SSPND output pin
- ULOAD output pin (indicates if requested current was allowed).
- Operating voltage: 3.0 - 5.5 (V)
- Oscillator input: 12 MHz
- ESD protection > 4kV HBM
- Industrial (I) Operating Temperature: -40°C to +85°C
