The FUSB3301 is an autonomous source-only type-C controller optimized for mobile chargers and power adapters. It sends the available power of the charger via CC1/CC2 using the USB Type-C standard and prevents VBUS from being activated until a valid connection is verified. It can be used for charging up to 15 W using Type C protocols. The FUSB3301 has a very low standby power consumption and is housed in a 0.5 mm pitch housing to accommodate power adapter PCBs.
Features
• Fully autonomous type C controller
• Supports Type-C version 1.1
• Fixed source mode
• Low standby power consumption: ICC = 5 µA (typical)
• VBUS switch control
• Three standard C-type VBUS currents (900 mA, 1.5 A, 3.0 A)
• 2 kV HBM ESD protection
• 10-pin MLP housing
• VDD OPERATING RANGE, 3.0 V - 5.5 V.

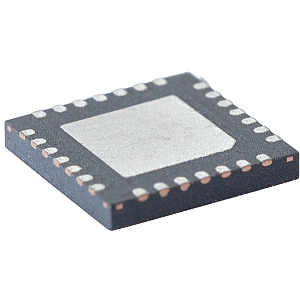

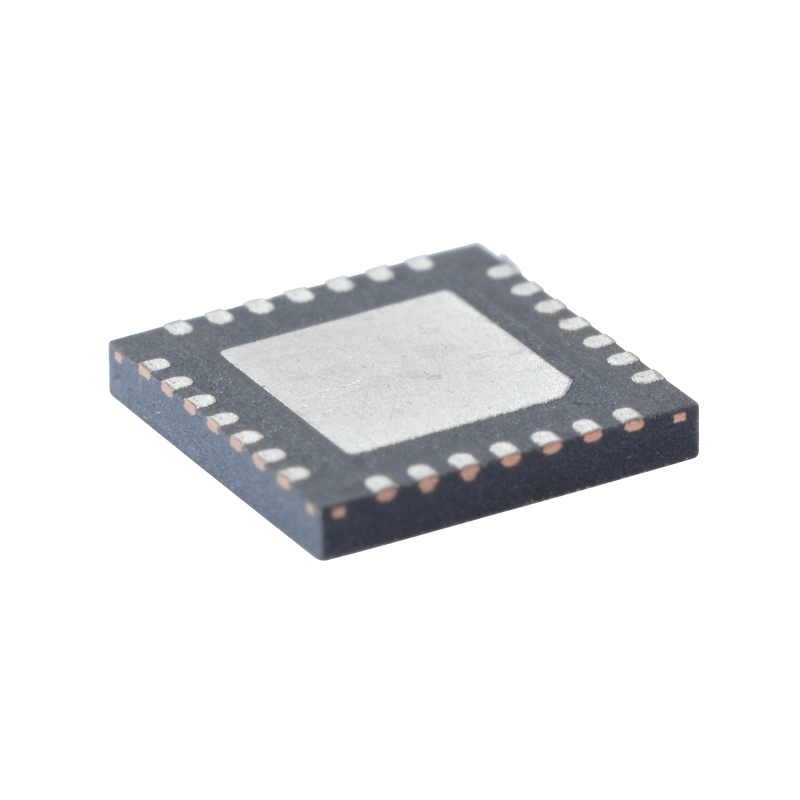

USB-UART transceiver,3..3.6 Vdc, 1Mbps, QFN-28
€10.33CP2102-GM
Technical information
| General | |
|---|---|
| Model | USB Transceiver |
| Type | USB-UART |
| Mounting form | QFN-28 |
| Electrical values | |
| Supply voltage | 3..3.6 VDC |
| Output voltage | 3.3 V DC |
| Data transfer rate | 12 Mbit/s |
| Manufacturer specifications | |
| Manufacturer | SILICON LABS |
| Manufacturer ID | CP2102-GM |
| Weight | 0.001 kg |
| RoHS | conform |
| EAN/GTIN | 9900003539662 |
| HS-Code | 85423990 |
