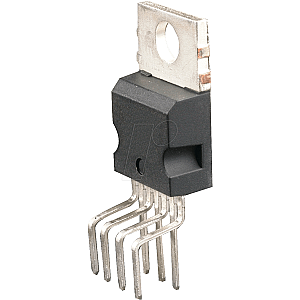

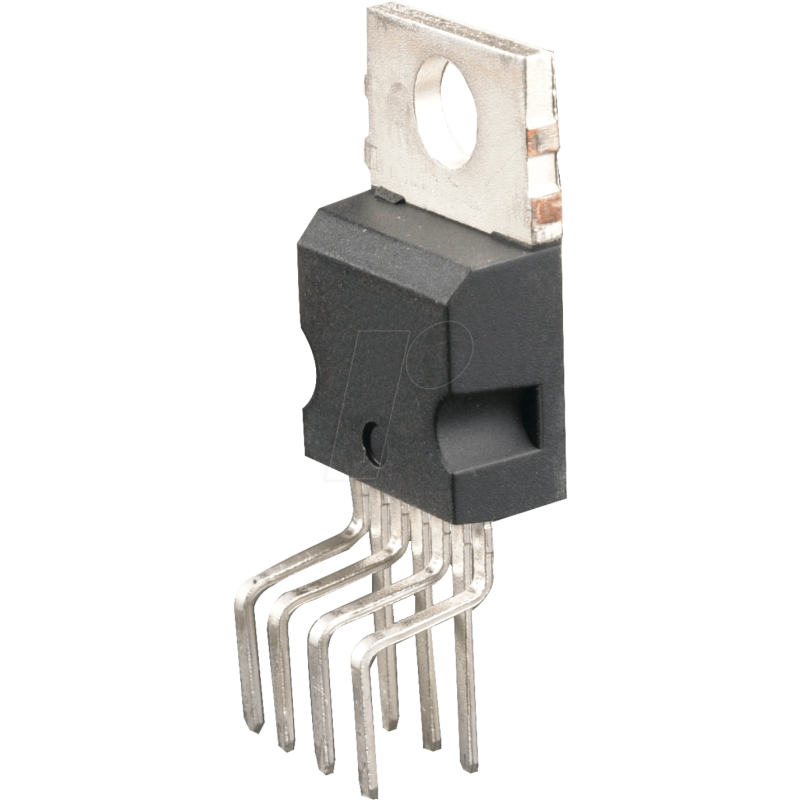

Vertical deflection booster, heptawatt-7

In stock SKU TDA 8177F

Vertical deflection booster, heptawatt-7

MPN TDA8177F Manufacturer STMICROELECTRONICS

€1.46

incl. 19% VAT · €1.23 excl. VAT

Package

Heptawatt-7

Specifications

General

Type Vertical

Model Deflection system

Mounting form Heptawatt-7

Other

Temperature range -20..+75

Electrical values

Supply voltage +10.0 ... +35.0 VDC

Output Current 2.5 A

Input Offset Voltage 7 mV

Quiescent Current 10 mA

Input Bias Current -2 µA

Settings

Open Loop Voltage Gain 80 dB

Manufacturer specifications

Manufacturer STMICROELECTRONICS

Manufacturer ID TDA8177F

Weight 0.001 kg

RoHS conform

EAN/GTIN 9900000596132

HS-Code 85423990

↓ A200/TDA 8177F.pdf

Vertical deflection booster
