Video output amplifier
Housing: DBS-9
In stock
SKU TDA 6111 Q

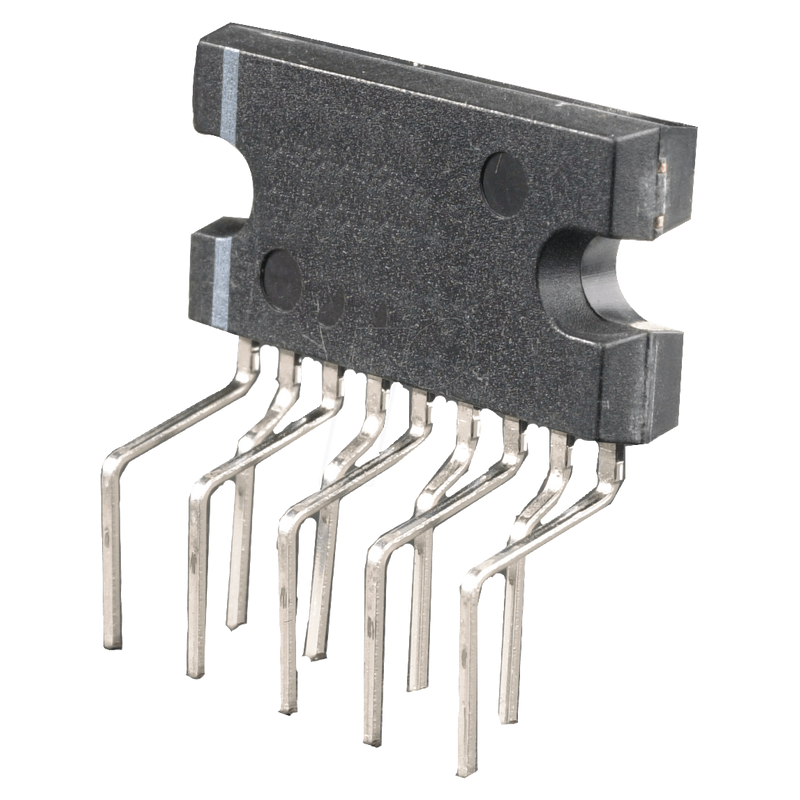

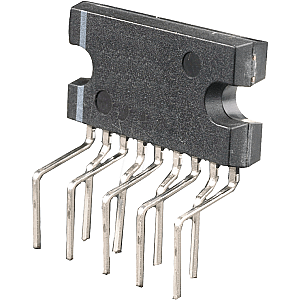

Video amplifier, DBS-9
MPN TDA6111Q
Manufacturer NXP
€1.70
incl. 19% VAT · €1.43 excl. VAT
Package
DBS-9
Specifications
General
Model
Amplifier
Type
Video
Design
16 MHz
Technology
DMOS
Mounting form
DBS-9
Other
Temperature range
-20 ... +65
Electrical values
Supply voltage
0 ... +250 VDC
Input voltage
0 ... +14.0 VDC
Input Bias Current
50 µA
Suppley Voltage Rejection
85 dB
Power loss
4 W
Slew rate
3000 V/µ sec
Manufacturer specifications
Manufacturer
NXP
Manufacturer ID
TDA6111Q
Weight
0.002 kg
RoHS
conform
EAN/GTIN
9900000397012
HS-Code
85423310
