Triple video-output amplifier
Housing: DBS-9
In stock
SKU TDA 6103 Q

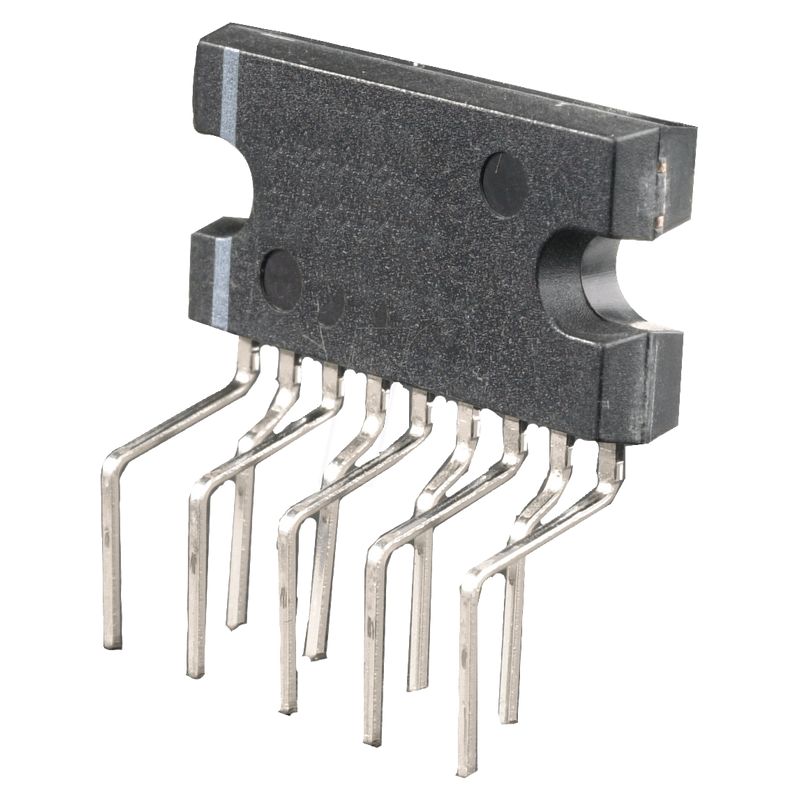

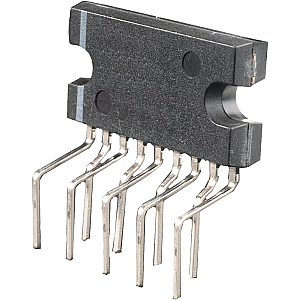

Video amplifier, DBS-9
MPN TDA6103Q
Manufacturer NXP
€1.64
incl. 19% VAT · €1.38 excl. VAT
Package
DBS-9
Specifications
General
Model
Amplifier
Type
Video
Design
3x
Technology
DMOS
Mounting form
DBS-9
Other
Temperature range
-20 ... +150
Electrical values
Supply voltage
0 ... +250 VDC
Output Current
10 A
Input Bias Current
-3 µA
Suppley Voltage Rejection
70 dB
Slew rate
1600 V/µ sec
Manufacturer specifications
Manufacturer
NXP
Manufacturer ID
TDA6103Q
Weight
0.002 kg
RoHS
conform
EAN/GTIN
9900000396978
HS-Code
85423310
