The Nuvoton® ISD17xx ChipCorder® series is a high-quality single-chip solution for voice recording and playback.
The duration of recording or playback can be set between 40 to 120 seconds, depending on the specific application. The sampling frequency can be defined between 4 and 12 kHz using an external resistor, which gives users increased flexibility regarding recording quality. The operating voltage extends over a range of 2.4 - 5.5 V.
Enclosure: DIP-28

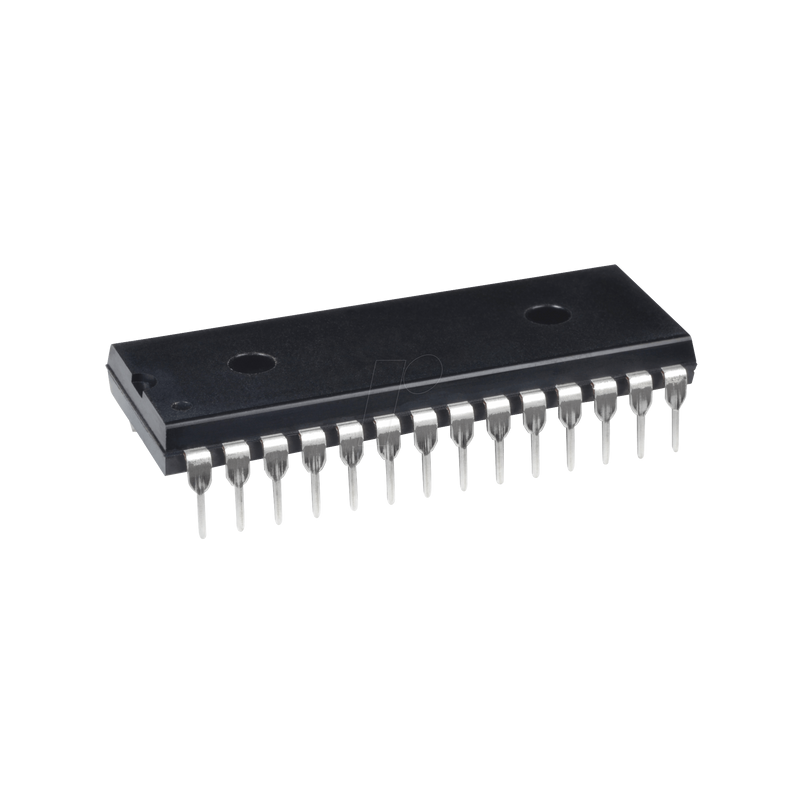

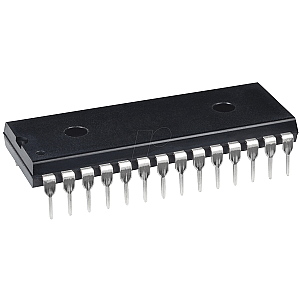

Voice recorder 40 - 120 s 4 - 12 kHz DIP28
€12.30ISD 1760 P
Technical information
| General | |
|---|---|
| Model | Recorder |
| Type | Voice recorder & playback |
| Design | Single-chip, multi-message |
| Technology | Single-chip, multi-message |
| Mounting form | DIP-28 |
| Other | |
| Temperature range | 0 +70 |
| Electrical values | |
| Supply voltage | 2.4 ... 5.5 VDC |
| Input voltage | 0 - 5,5 VDC |
| Output voltage | -0,3 - 5,5 V DC |
| Manufacturer specifications | |
| Manufacturer | NUVOTON |
| Weight | 0.005 kg |
| RoHS | conform |
| EAN/GTIN | 9900001143106 |
| HS-Code | 85423990 |
