The Nuvoton® ISD17xx ChipCorder® series is a high-quality single-chip solution for voice recording and playback.
The duration of recording or playback can be set between 20 to 60 seconds, depending on the specific application. The sampling frequency can be defined between 4 and 12 kHz using an external resistor, which gives users increased flexibility regarding recording quality. The operating voltage extends over a range of 2.4 - 5.5 V.
Enclosure: SOL-28

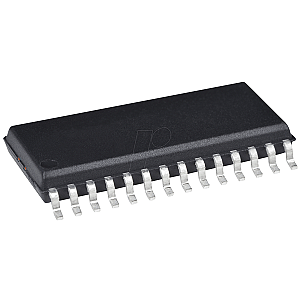

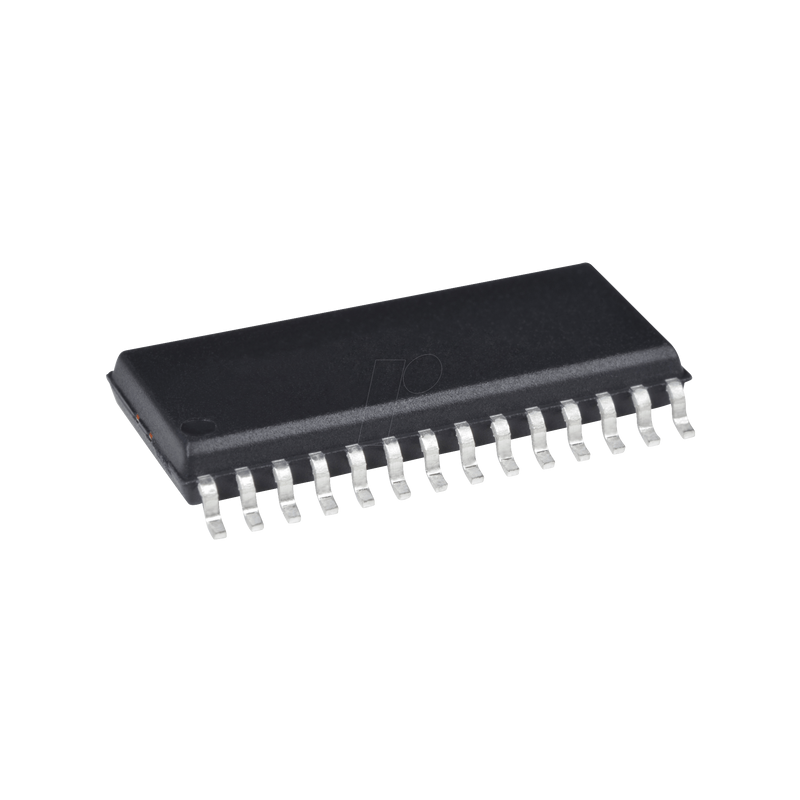

Voice recording, playback, 2.4 ... 5.5 V, SOL-28
€8.56ISD 1730 S
Technical information
| General | |
|---|---|
| Model | Recorder |
| Type | Voice recorder & playback |
| Design | Single-chip, multi-message |
| Technology | Single-chip, multi-message |
| Mounting form | SOL-28 |
| Other | |
| Temperature range | 0 +70 |
| Electrical values | |
| Supply voltage | 2.4 ... 5.5 VDC |
| Input voltage | 0 - 5,5 VDC |
| Output voltage | -0,3 - 5,5 V DC |
| Manufacturer specifications | |
| Manufacturer | NUVOTON |
| Manufacturer ID | ISD1730SY |
| Weight | 4.0E-4 kg |
| RoHS | conform |
| EAN/GTIN | 9900001143090 |
| HS-Code | 85423990 |
