Precision buffered voltage reference
The MCP1501 is a precision buffered voltage reference with an initial accuracy of 0.10% and is available in ten voltage options. The MCP1501 is a low-drift bandgap reference and uses chopper-based amplifiers that significantly reduce drift and deliver high output current. The MCP1501 is available in a very small 2x2 WDFN package as well as in SOT-23 and SOIC packages. The SOT-23 package is AEC-Q100 certified.
Main features
In stock
SKU MCP1501-25E/SN

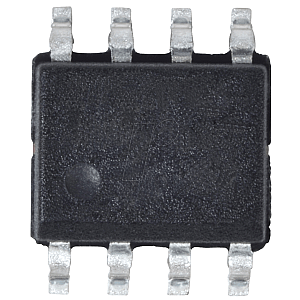

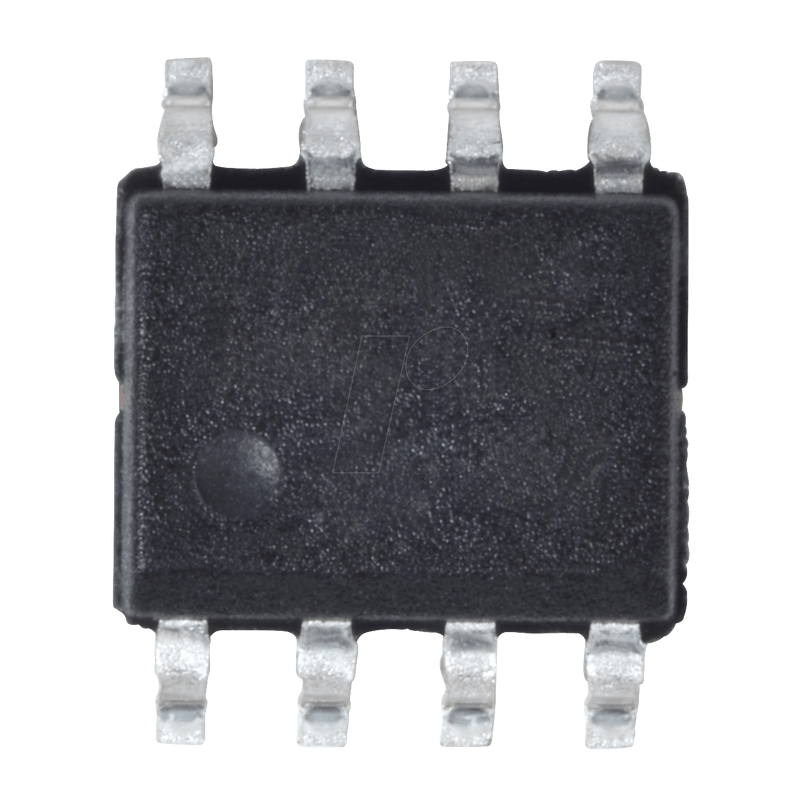

Voltage reference, 2.5 V, SOIC-8
MPN MCP1501-25E/SN
Manufacturer MICROCHIP
€1.34
incl. 19% VAT · €1.13 excl. VAT
Package
SOIC-8
Specifications
General
Type
Spannungsreferenz
Model
Präzision
Design
gepuffert
Mounting form
SOIC-8
Initial accuracy
0.1 %
Tepmerature coefficient
50 ppm/°C
Electrical values
Output voltage
2.5 V DC
Operating Current max.
0.14 mA
Other
Temperature range
-40..+125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP1501-25E/SN
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003867505
HS-Code
85423990
