High precision buffered voltage reference
The MCP1501 is a high precision buffered voltage reference with an initial accuracy of 0.10% and is available in 10 voltage options. The MCP1501 is a low drift bandgap-based reference and uses chopper-based amplifiers that significantly reduce drift and deliver high output current. The MCP1501 is available in a very small 2x2 WDFN package as well as in the SOT-23 and SOIC packages. The SOT-23 enclosure is AEC-Q100 qualified.
Key features
In stock
SKU MCP1501T-50E/CHY

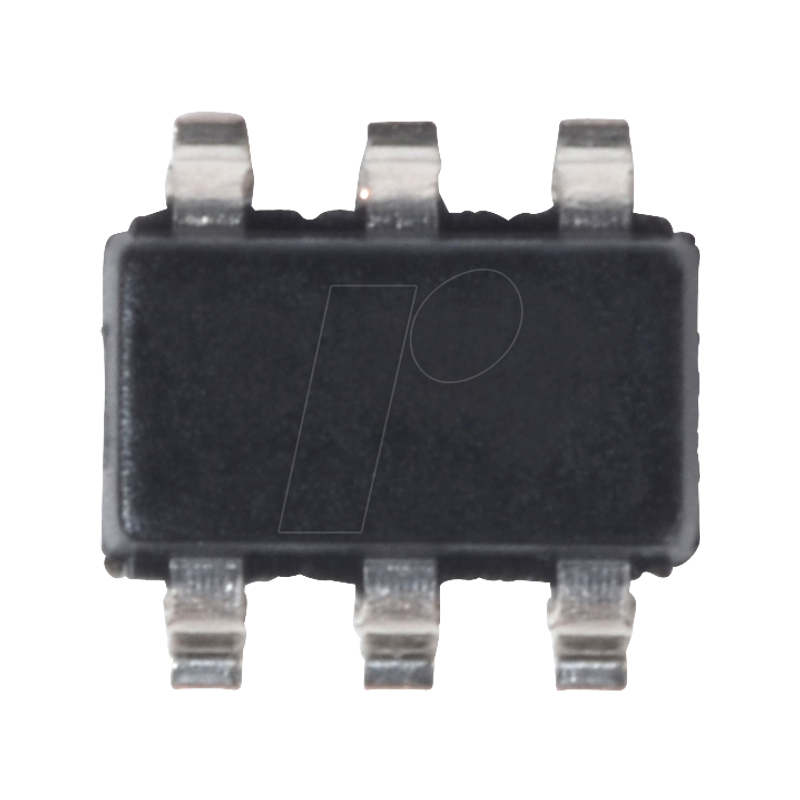

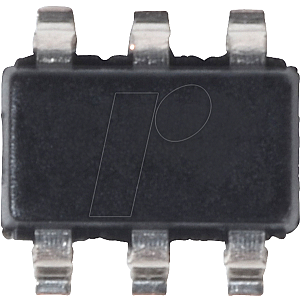

Voltage reference, 5 V, SOT-23-6
MPN MCP1501T-50E/CHY
Manufacturer MICROCHIP
€1.64
incl. 19% VAT · €1.38 excl. VAT
Package
SOT-23-6
Specifications
General
Type
Precision
Model
Voltage reference
Design
gepuffert
Mounting form
SOT-23-6
Electrical values
Output voltage
5 V DC
Supply voltage
5.2..5.5 VDC
Input voltage
5.2..5.5 VDC
Other
Temperature range
-40..+125
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
MCP1501T-50E/CHY
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003502437
HS-Code
85423990
