The TL431 and TL432 are three-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36V, with two external resistors. These devices have a typical output impedance of 0.2 O.
In stock
SKU TL 431 CPK

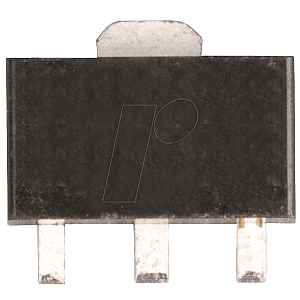

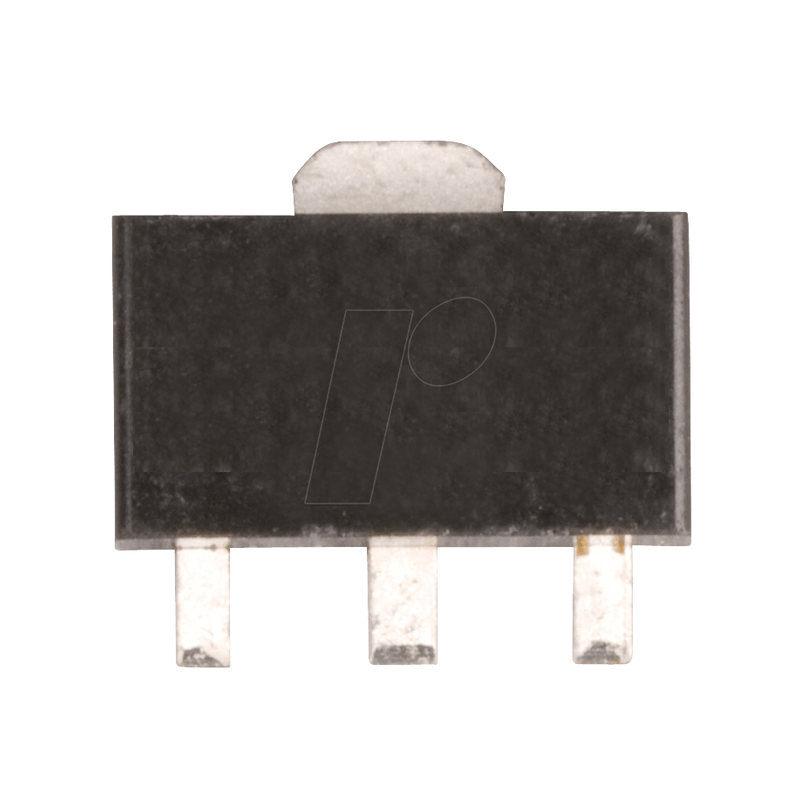

Voltage reference, adjustable, 2.495 ... 36 V, SOT-89-3
MPN TL431CPK
Manufacturer TEXAS INSTRUMENTS
€0.48
incl. 19% VAT · €0.40 excl. VAT
Package
SOT-89-3
Specifications
General
Type
Spannungsreferenz
Model
Voltage reference
Design
Adjustable
Mounting form
SOT-89-3
Electrical values
Output voltage
2.495 - 36 V DC
Operating Current max.
0.4 mA
Other
Temperature range
0 ... +70
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
TL431CPK
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001891182
HS-Code
85423990
