The LM4040 and LM4041 precision voltage references are ideal for space-critical applications and are available in the SOT-23 subminiature housing for surface mounting.
The LM4040 is available with fixed reverse voltages of 2,500V, 4,096V and 5,000V. The LM4041 is available with a fixed cut-off voltage of 1.225V or an adjustable cut-off voltage.
The minimum operating current ranges from 60 ìA for the LM4041-1.2 to 74 A for the LM4040-5.0. The LM4040 versions have a maximum operating current of 15 mA. The LM4041 versions have a maximum operating current of 12 mA. The LM4040 and LM4041 feature temperature drift correction of the bandgap reference and low dynamic impedance, ensuring stable breakdown voltage accuracy over a wide range.
In stock
SKU LM4041CYM3-1.2

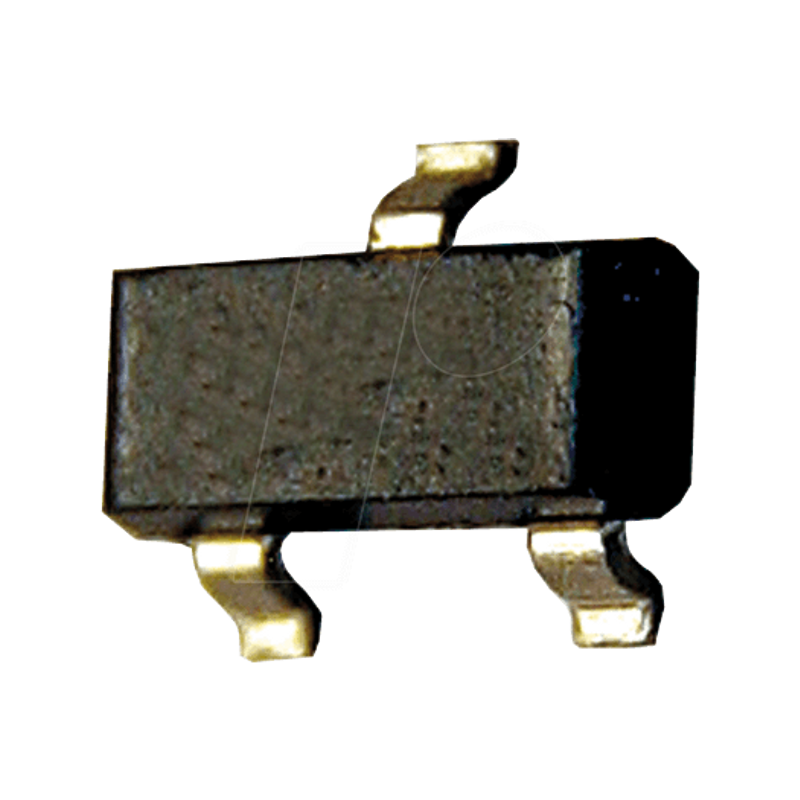

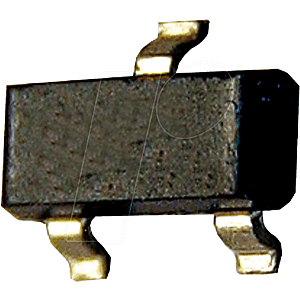

Voltage reference, fixed, 1.2 V, SOT-23-3
MPN LM4041CYM3-1.2-TR
Manufacturer MICROCHIP
€0.58
incl. 19% VAT · €0.49 excl. VAT
Package
SOT-23-3
Specifications
General
Type
Spannungsreferenz
Model
parallel
Design
fest
Mounting form
SOT-23-3
Initial accuracy
0.5 %
Tepmerature coefficient
100 ppm/°C
Electrical values
Output voltage
1.2 V DC
Output Current
0.012 A
Output Current
12 mA
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
LM4041CYM3-1.2-TR
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003867529
HS-Code
85423990
