The LM185-1.2-N/LM285-1.2-N/LM385-1.2-N are 2-pole bandgap voltage regulator diodes for the micro range. They operate over a current range from 10µA to 20mA and are characterized by an exceptionally low dynamic impedance and good temperature stability. A narrow voltage tolerance is achieved by on-chip trimming. As the LM185-1.2-N bandgap reference uses only transistors and resistors, this results in low noise and good long-term stability.
Key features
In stock
SKU LM 385 M1,2

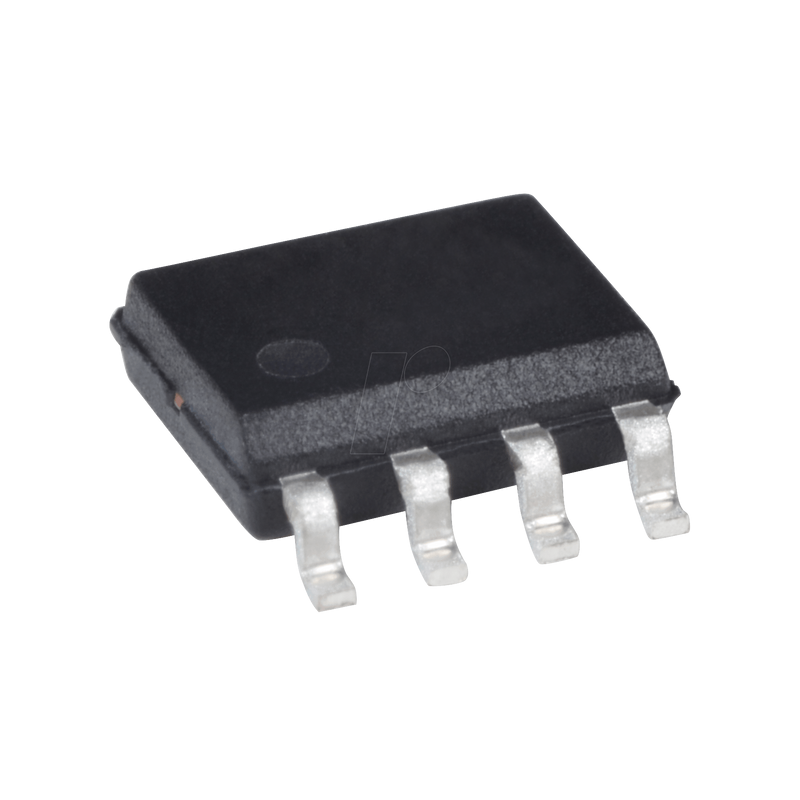

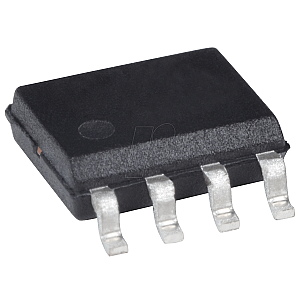

Voltage reference, fixed, 1.235 V, SO-8
MPN LM385D-1-2
Manufacturer TEXAS INSTRUMENTS
€2.12
incl. 19% VAT · €1.78 excl. VAT
Package
SO-8
Specifications
General
Type
3-terminal
Model
Voltage reference
Mounting form
SO-8
Electrical values
Output voltage
1,24 - 5,3 V DC
Other
Temperature range
0...+70
Manufacturer specifications
Manufacturer
TEXAS INSTRUMENTS
Manufacturer ID
LM385D-1-2
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001094033
HS-Code
85423990
