The LM136-2.5/LM236-2.5 and LM336-2.5 integrated circuits are 2.5-V precision shunt regulator diodes. These monolithic IC voltage references operate as a 2.5-V Zener with a low temperature coefficient and a dynamic impedance of 0.2 ohms. A third connector on the LM136-2.5 allows easy trimming of the reference voltage and temperature coefficient.

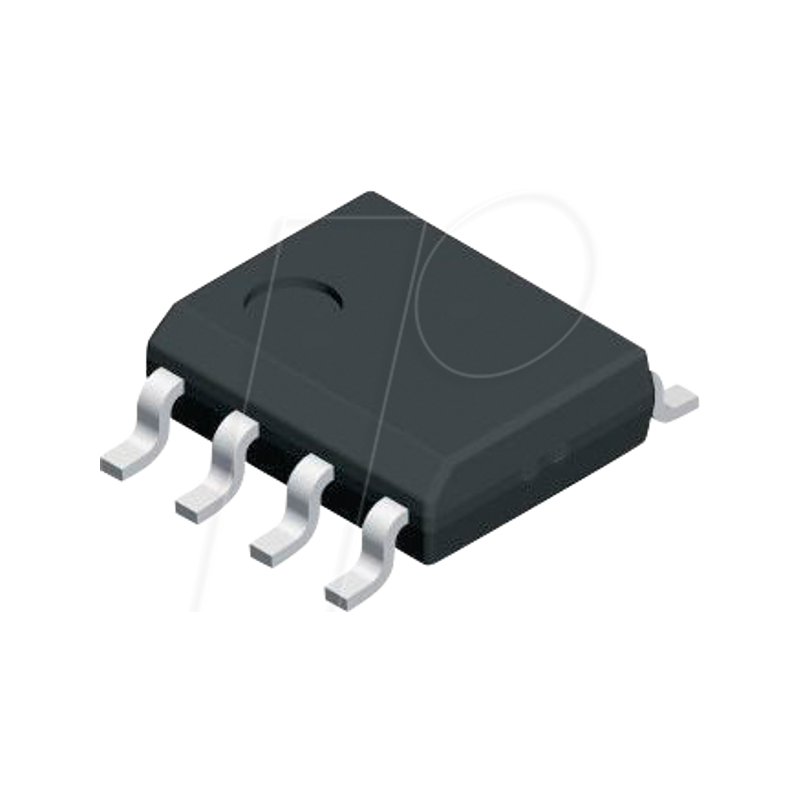

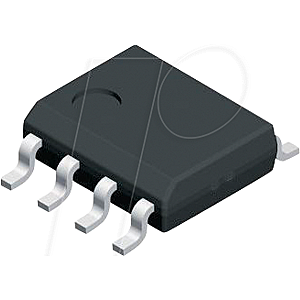

Voltage reference, fixed, 2.5 V, ±4%, SO-8
€1.38LM 336 BM-2.5
Technical information
| General | |
|---|---|
| Type | Spannungsreferenz |
| Manufacturer specifications | |
| Manufacturer | TEXAS INSTRUMENTS |
| Manufacturer ID | LM336BM-2.5/NOPB |
| Weight | 0.002 kg |
| RoHS | conform |
| EAN/GTIN | 9900003868038 |
| HS-Code | 85423990 |
