AD 580
The AD 580 is a cost-effective voltage reference that provides a fixed voltage value of 2.5 V at the output, at input voltages between 4.5 V and 30 V. The low quiescent current of 1.5 mA offers a clear advantage over conventional Zener technology.
FEATURES
- High degree of accuracy: 2.500 V ±0.4%
- Excellent temperature stability: 10 ppm/°C
- Excellent long-term stability
- Low quiescent current: 1.5 mA
Housing: TO-52
In stock
SKU AD 580 JH

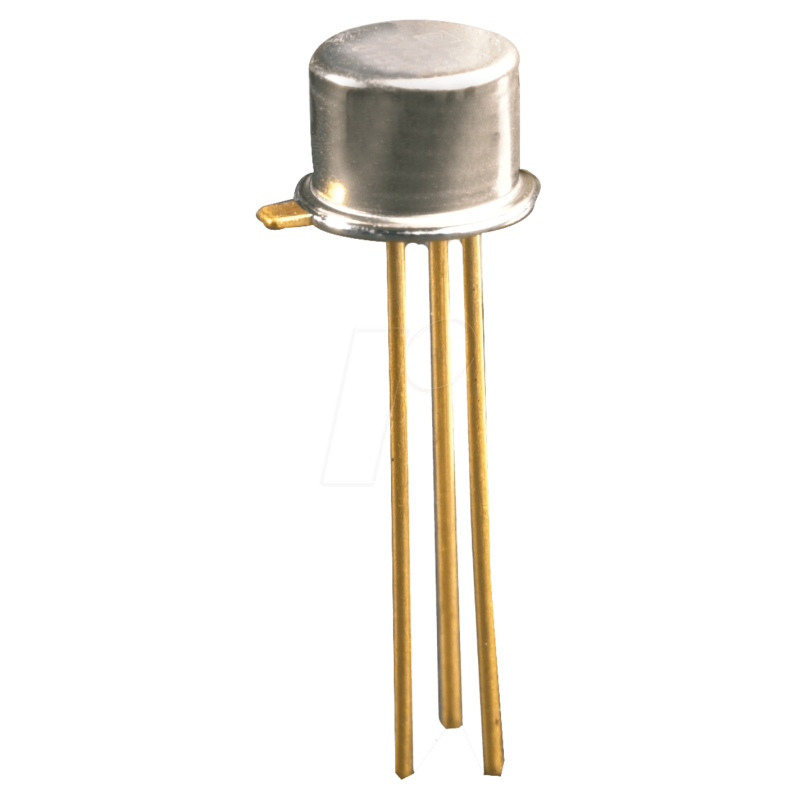

Voltage reference, fixed, 2.5 V, TO-52
MPN AD580JHZ
Manufacturer ANALOG DEVICES
€34.34
incl. 19% VAT · €28.86 excl. VAT
Package
H-03A
Specifications
General
Type
2,5V
Design
High-precision
Mounting form
H-03A
Electrical values
Output voltage
2,5 V DC
Supply voltage
40 VDC
Input voltage
4,5 - 30 VDC
Igf
1 - 1,5 mA
Other
Temperature range
0 +70
Manufacturer specifications
Manufacturer
ANALOG DEVICES
Manufacturer ID
AD580JHZ
Weight
3.0E-4 kg
RoHS
conform
EAN/GTIN
9900000038144
HS-Code
85423990
