The LM4040 and LM4041 precision voltage references are ideal for space-critical applications and are available in the SOT-23 subminiature housing for surface mounting.
The LM4040 is available with fixed reverse voltages of 2,500V, 4,096V and 5,000V. The LM4041 is available with a fixed cut-off voltage of 1.225V or an adjustable cut-off voltage.
The minimum operating current ranges from 60 mA for the LM4041-1.2 to 74 mA for the LM4040-5.0. The LM4040 versions have a maximum operating current of 15 mA. The LM4041 versions have a maximum operating current of 12 mA. The LM4040 and LM4041 feature temperature drift correction of the bandgap reference and low dynamic impedance, ensuring stable breakdown voltage accuracy over a wide range.
In stock

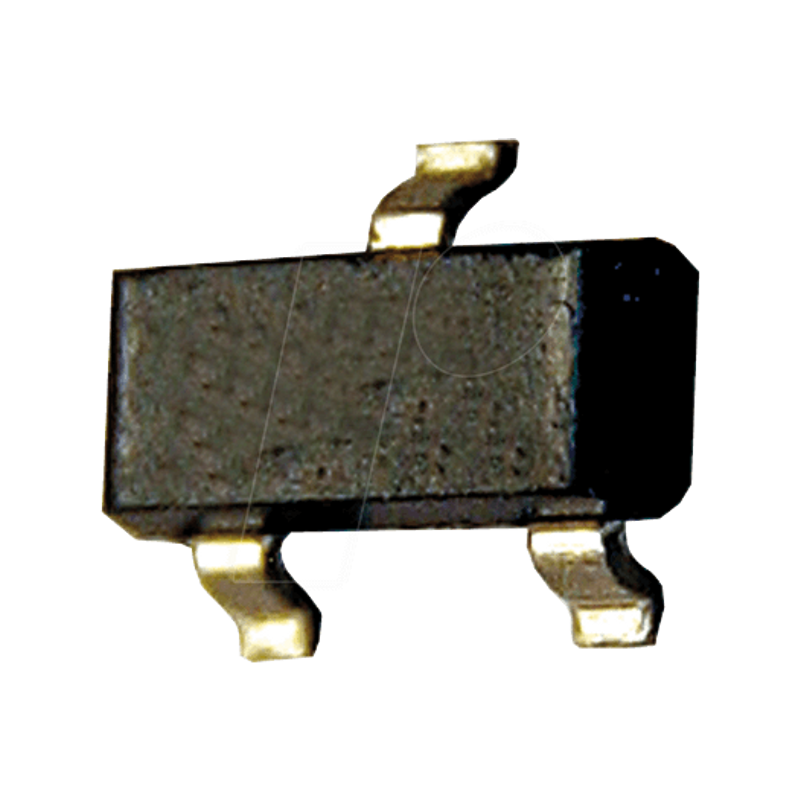

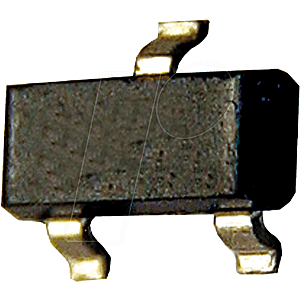

SKU LM4040DYM3-5.0
Voltage reference, fixed, 5, 150ppm V, SOT-23-3
MPN LM4040DYM3-5.0-TR
Manufacturer MICROCHIP
€0.77
incl. 19% VAT · €0.65 excl. VAT
Package
SOT-23-3
Specifications
Electrical values
Output voltage
5 V DC
General
Mounting form
SOT-23-3
Initial accuracy
1 %
Tepmerature coefficient
150 ppm/°C
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
LM4040DYM3-5.0-TR
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900003867543
HS-Code
85423990
