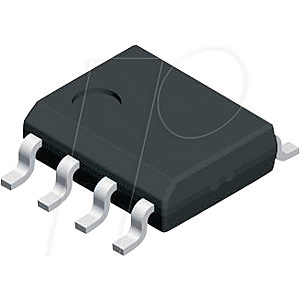

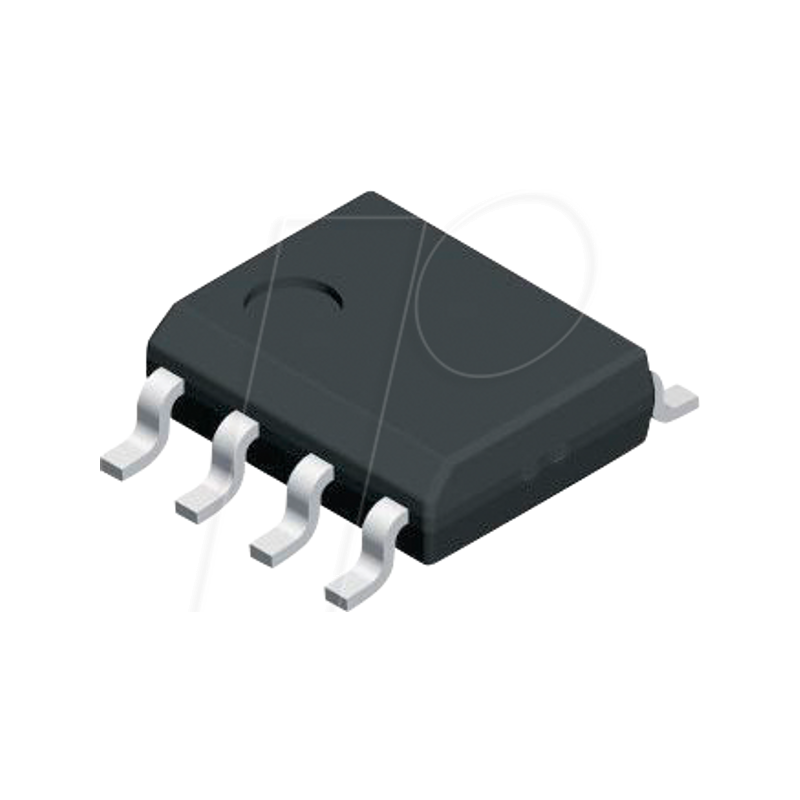

Voltage reference, fixed, 5.0 V, ± 4%, SO-8

5-V voltage reference diode

Description:
The LM136-5.0/LM236-5.0/LM336-5.0 integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6 Ohm dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-5.0 is rated for operation over -55°C to +125°C while the LM236-5.0 is rated over a -25°C to +85°C temperature range. The LM336-5.0 is rated for operation over a 0°C to +70°C temperature range. See the connection diagrams for available packages.

Features
- Low temperature coefficient
- Wide operating current of 600 µA to 10 mA
- 0.6O dynamic impedance
- ± 4% initial tolerance
- Guaranteed temperature stability
- Easily trimmed for minimum temperature drift
- Fast turn-on
