These voltage regulat ors are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
In stock
SKU MC 7812 CD2TG

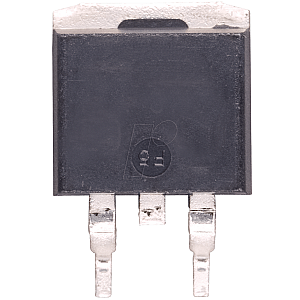

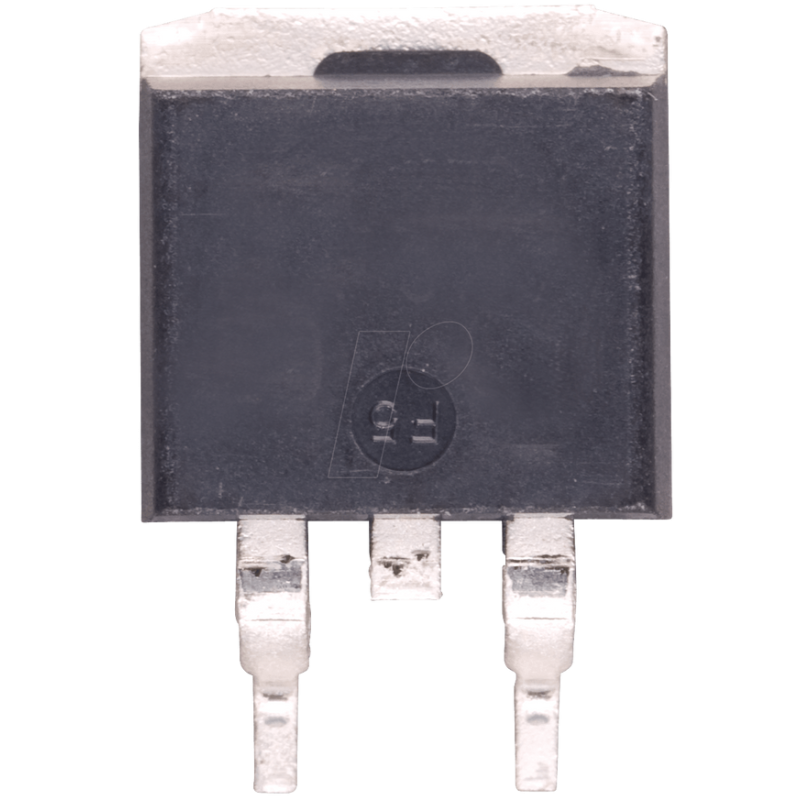

Voltage regulator, fixed, 12 V, D2PAK
MPN MC7812CD2TG
Manufacturer ONSEMI
€0.86
incl. 19% VAT · €0.72 excl. VAT
Package
D²PAK (TO-263-3)
Specifications
General
Model
Voltage regulator
Design
Fixed
Mounting form
D²PAK (TO-263-3)
Electrical values
Output voltage
12 V DC
Output Current
1 A
Input voltage
+14.5 ... +27 VDC
Other
Temperature range
0 ... +125
Manufacturer specifications
Manufacturer
ONSEMI
Manufacturer ID
MC7812CD2TG
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001886676
HS-Code
85423990
