The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 three-terminal regulators are intended for local, on-card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heatsinking is 500 mA.
In stock
SKU MC 78M12 CTG

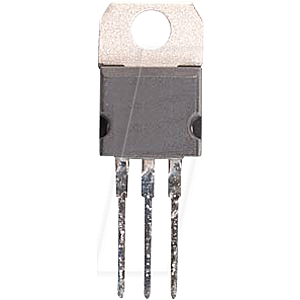

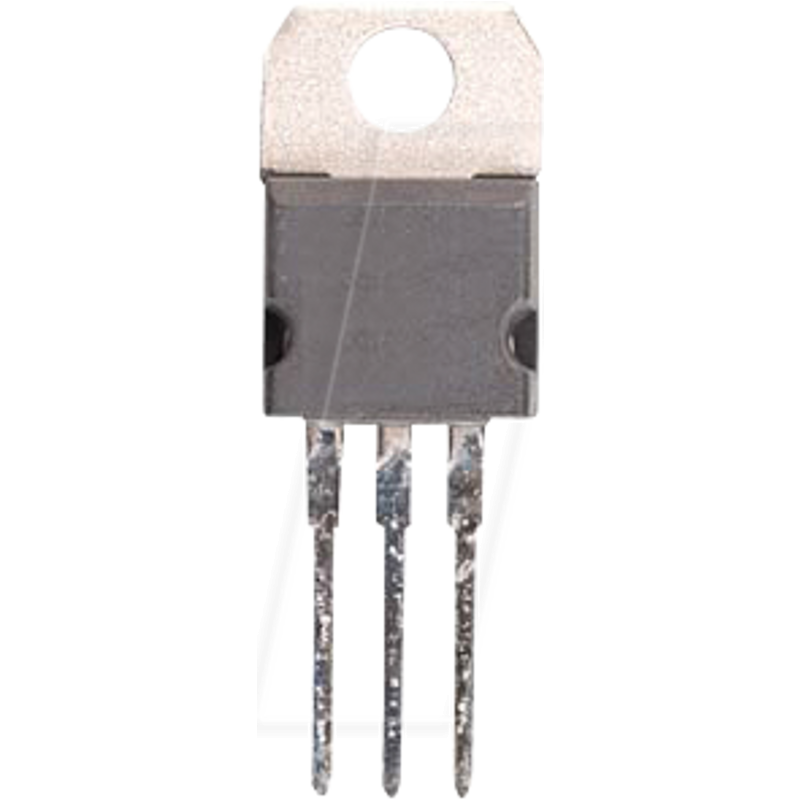

Voltage regulator, fixed, 12 V, TO-220
MPN MC78M12CTG
Manufacturer ONSEMI
€0.67
incl. 19% VAT · €0.56 excl. VAT
Package
TO-220
Specifications
General
Model
Voltage regulator
Design
Fixed
Mounting form
TO-220
Electrical values
Output voltage
12 V DC
Output Current
0.5 A
Input voltage
+7.0 ... +20 VDC
Other
Temperature range
0 ... +125
Manufacturer specifications
Manufacturer
ONSEMI
Manufacturer ID
MC78M12CTG
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001890932
HS-Code
85423990
