The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 three-terminal regulators are intended for local, on-card voltage regulation. Internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heatsinking is 500 mA.
In stock
SKU MC 78M15 CDTG

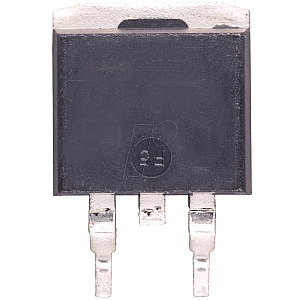

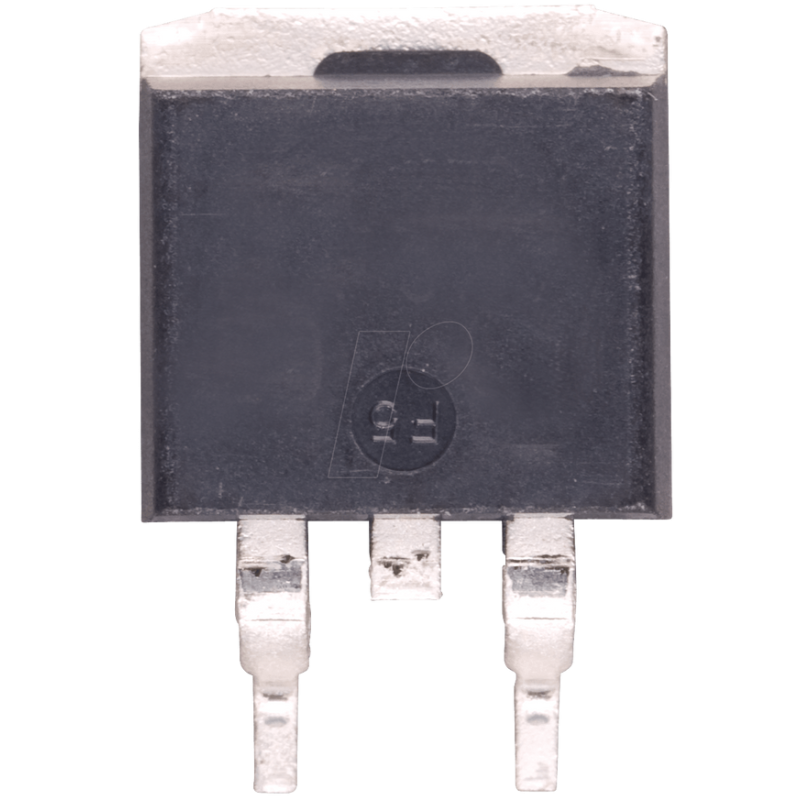

Voltage regulator, fixed, 15 V, D2PAK
MPN MC78M15CDTG
Manufacturer ONSEMI
€0.48
incl. 19% VAT · €0.40 excl. VAT
Package
DPAK-3
Specifications
General
Model
Voltage regulator
Design
Fixed
Mounting form
DPAK-3
Electrical values
Output voltage
15 V DC
Output Current
0.5 A
Input voltage
+17.5 ... +30 VDC
Other
Temperature range
0 ... +125
Manufacturer specifications
Manufacturer
ONSEMI
Manufacturer ID
MC78M15CDTG
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900001889080
HS-Code
85423990
