These voltage regulat ors are monolithic integrated circuits designed as fixed-voltage regulators for a wide variety of applications including local, on-card regulation. These regulators employ internal current limiting, thermal shutdown, and safe-area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
In stock
SKU MC 7805 CD2TG

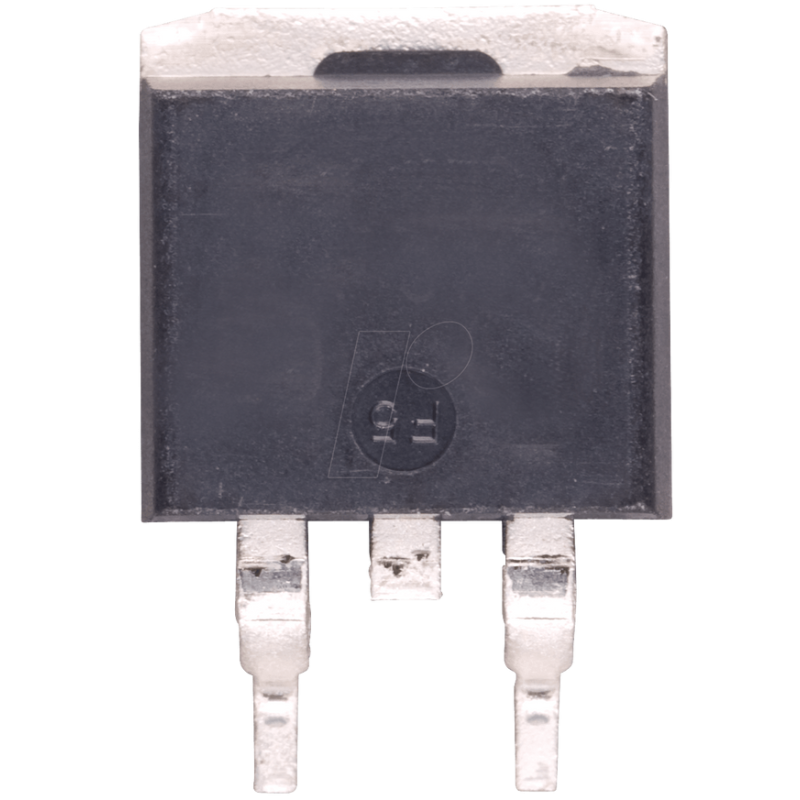

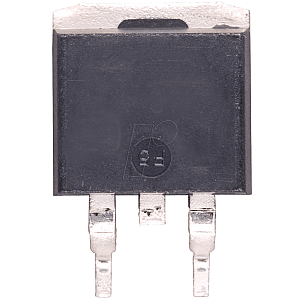

Voltage regulator, fixed, 5 V, D2PAK
MPN MC7805CD2TG
Manufacturer ONSEMI
€0.65
incl. 19% VAT · €0.55 excl. VAT
Package
D²PAK (TO-263-3)
Specifications
General
Model
Voltage regulator
Design
Fixed
Mounting form
D²PAK (TO-263-3)
Electrical values
Output voltage
5 V DC
Output Current
1 A
Input voltage
+7.0 ... +20 VDC
Other
Temperature range
0 ... +125
Manufacturer specifications
Manufacturer
ONSEMI
Manufacturer ID
MC7805CD2TG
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900001889004
HS-Code
85423990
