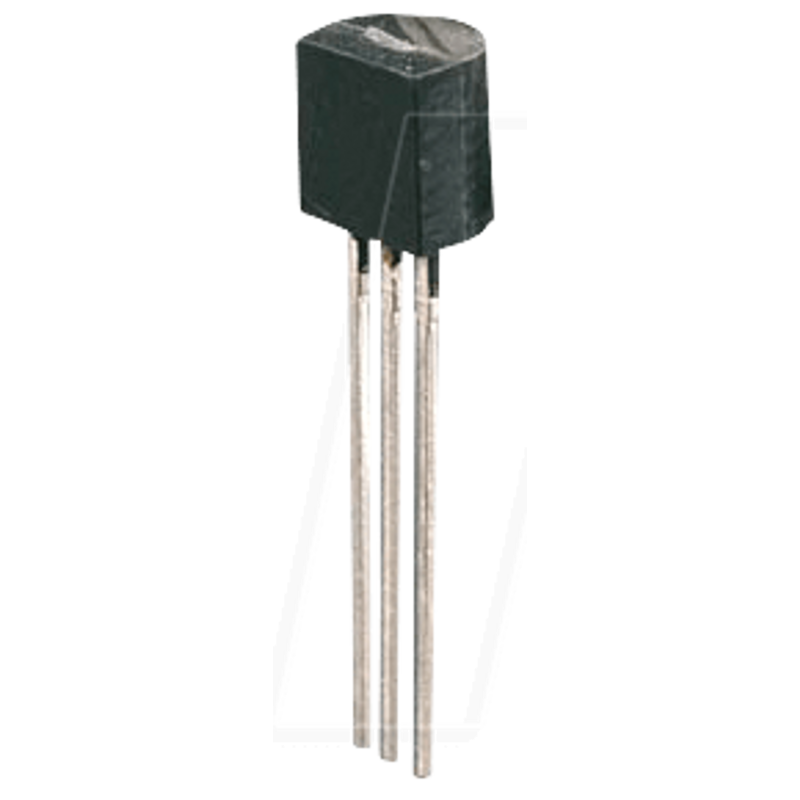

Voltage regulator, fixed, +8 V, 0.1 A, 4%, TO-92

0.1A Positive Voltage Regulator ICs

Description
The L78L series of three-pole positive regulators have internal current limitation and thermal shutdown, making them essentially indestructible. If a suitable heat sink is provided, they can provide an output current of up to 100 mA. They are intended as fixed voltage regulators for a variety of applications, including local or on-card control to eliminate noise and distribution problems associated with single-point control. In addition, they can be used with power-pass elements to produce high-current voltage regulators. The L78L series, which is used as a replacement for zener diodes/resistor combinations, offers an improvement along with lower quiescent current and lower noise.

Features
• Output current up to 100 mA
• Output voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 24 V.
• Thermal overload protection
• Short circuit protection
• No external components are required
• Available in a choice of ± 4% (A) or ± 8% (C)
