CMOS Quad Exclusive-NOR Gate
Description
The HEF4077B is a quad 2-input EXCLUSIVE-NOR gate. The outputs are fully buffered for the highest noise immunity and pattern insensitivity to output impedance. The HEF4077B operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Features
- Fully static operation
- 5 V, 10 V, and 15 V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40 °C to +85 °C
- Complies with JEDEC standard JESD 13-B
In stock
SKU SMD 4077

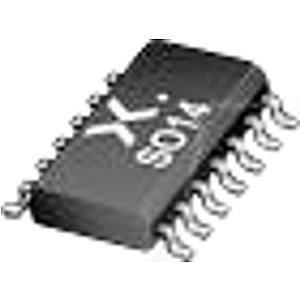

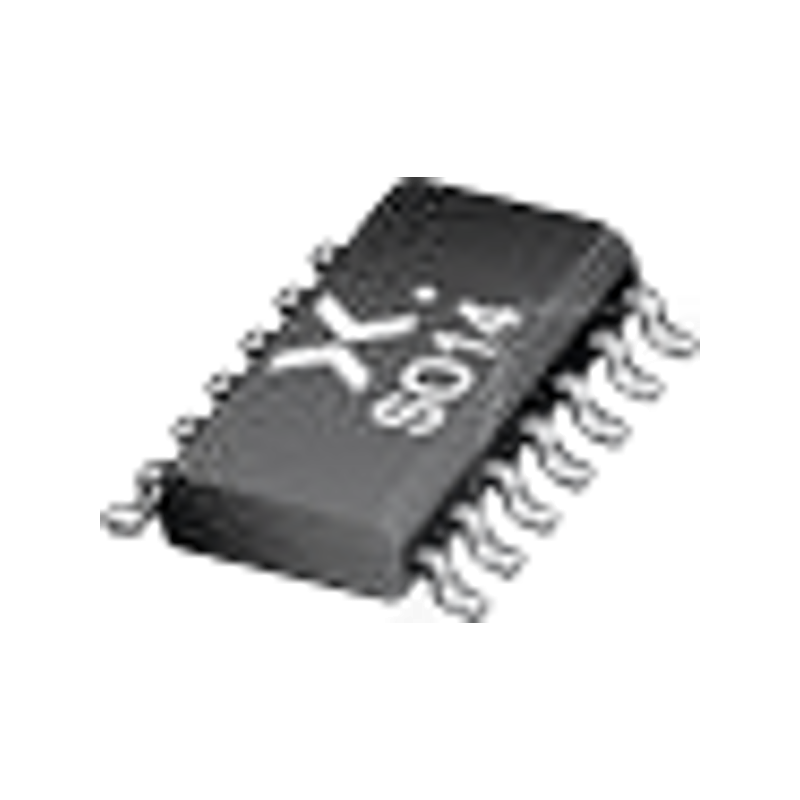

XNOR gate, quad, 3 ... 15 V, SO-14
MPN HEF4077BT
Manufacturer NXP
€0.25
incl. 19% VAT · €0.21 excl. VAT
Package
SO-14
Specifications
General
family
4000B
Model
XNOR-Gate
Design
4-element
Mounting form
SO-14
Other
Temperature range
-40 ... +85
Electrical values
Supply voltage
3.00 ... 15.0 VDC
Input voltage
0 ... 15.0 VDC
Performance
200 mW
Input voltage ViH
11 VDC
Input voltage ViL
1.5 VDC
Manufacturer specifications
Manufacturer
NXP
Manufacturer ID
HEF4077BT
Weight
1.0E-4 kg
RoHS
conform
EAN/GTIN
9900000184933
HS-Code
85423990
