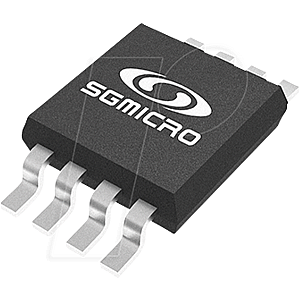

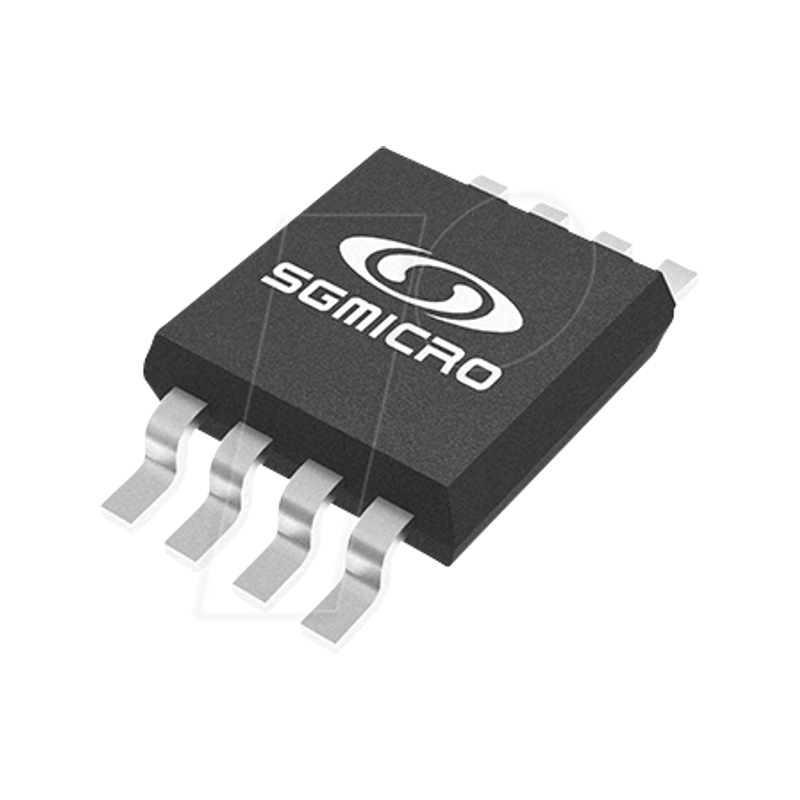

2-fold rail-to-rail OP, 2.5 - 5.5 V, 100 MHz, 160 V/µs, SO-8

SGM80582/SGM80584, 220MHz, Rail-to-Rail I/O, CMOS Operational Amplifiers

Description:
The SGM80582 (dual) and SGM80584 (quad) are high-speed, voltage-feedback CMOS operational amplifiers. They are designed for video and other applications which require wide bandwidth. They are unity-gain stable and can provide large output current. Differential gain is 0.01% and differential phase is 0.1°. Quiescent current is only 4.5mA/Amplifier. The SGM80581/2/4 are optimized for operation on single or dual supplies as low as 2.5V (±1.25V) and up to 5.5V (±2.75V). Input common mode range extends beyond the supplies. The output swing is within 15mV of the rails, supporting wide dynamic range. The SGM80581/2/4 are suitable for applications requiring high continuous output current. Multichannel versions feature completely independent circuitry for lowest crosstalk and freedom from interaction. The single SGM80581 is available in Green SOT-23-5 and SOIC-8 packages. The dual SGM80582 is available in Green MSOP-8 and SOIC-8 packages. The quad SGM80584 is available in a Green SOIC-14 package. All are specified over the extended -40? to +125? temperature range.

Features:
- Unity-Gain Bandwidth: 220MHz
- Wide Bandwidth: 100MHz GBP
- High Slew Rate: 160V/µs
- Low Noise: 7nV/Hz at 1MHz
- Rail-to-Rail Input and Output
- High Output Current: 150mA (TYP)
- Excellent Video Performance:
- Diff Gain: 0.01%, Diff Phase: 0.1°
- 0.1dB Gain Flatness: 30MHz
- Low Input Bias Current: 2pA
- Quiescent Current: 4.5mA/Amplifier (TYP)
- Thermal Shutdown
- 2.5V to 5.5V Single Supply or ±1.25V to ±2.75V Dual Power Supplies
- -40? to +125? Operating Temperature Range
- Small Packaging:
SGM80582 Available in Green MSOP-8 and SOIC-8 Packages
SGM80584 Available in a Green SOIC-14 Package

Applications:
- Video Processings
- Ultrasound
- Optical Networking, Tunable Lasers
- Photodiode Transimpedance Amplifiers
- Active Filters
- High-Speed Integrators
- Analog-to-Digital (A/D) Converter Input Buffers
- Digital-to-Analog (D/A) Converter Output Amplifiers
- Barcode Scanners
