8-bit AVR microcontroller with 32 Kbytes ISP flash
Microchip's 8-bit AVR RISC-based high-performance picoPower microcontroller combines 32 KB ISP flash memory with read and write functions, 32B EEPROM, 2 KB SRAM, 23 universal I/O lines, 1024 universal work registers and three flexible timers/counters with comparison modes, internal and external interrupts, serial programmable USART, a byte-oriented serial 2-wire interface, a serial SPI port, a 10-bit A/D converter with 6 channels (8 channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator and five software-selectable power save modes. The processor operates between 1.8 and 5.5 volts.
By executing powerful commands in a single clock cycle, the device achieves throughputs of nearly 1 MIPS per MHz, balancing power consumption and processing speed.
In stock
SKU ATMEGA 328P-MU

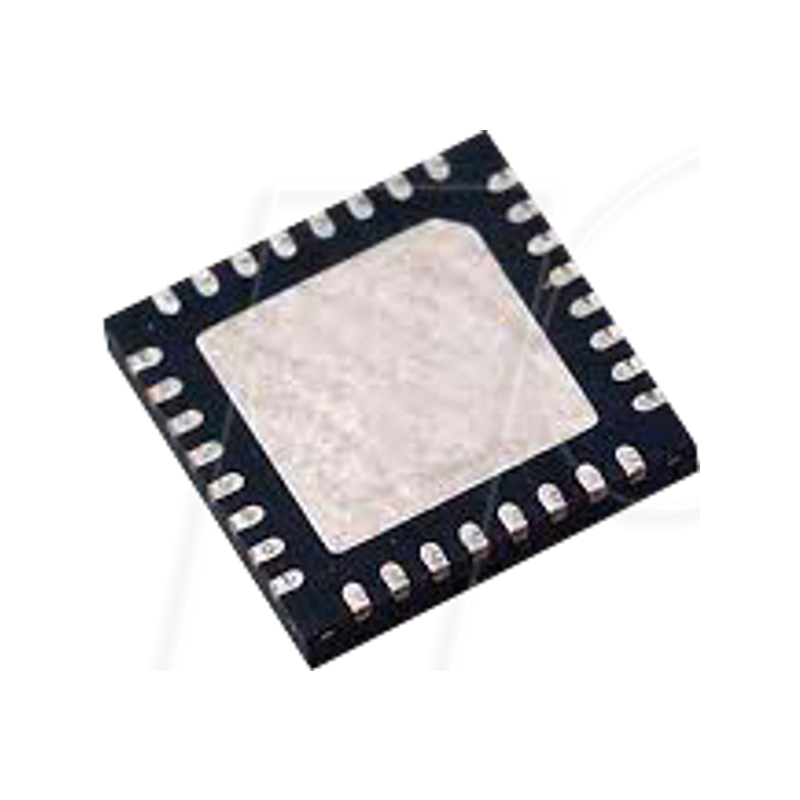

8-bit ATMega AVR® microcontroller, 32 KB, 20 MHz, VQFN-32 taped
MPN ATMEGA328P-MU
Manufacturer MICROCHIP
€2.39
incl. 19% VAT · €2.01 excl. VAT
Package
VQFN-32
Specifications
General
Type
8-bit microcontroller
Technology
AVR® RISC
Model
ATmega328P
Design
Watchdog
Mounting form
VQFN-32
Specials
CPU clock
20 MHz
Implementation
Memory
32
RAM
2 kByte
EEPROM
1024 Bytes
I/O-Pins
23
8-bit Timer
2
16-bit Timer
1
PWM
6
Analog comparator
1
Interfaces
I²C
1
SPI
2
ODC
8
UART
1
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATMEGA328P-MU
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002690999
HS-Code
85423190
