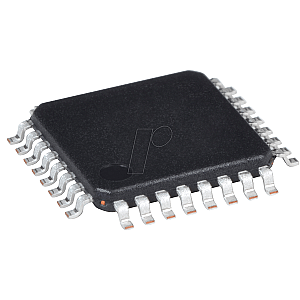

8-bit AVR microcontroller with 32 Kbytes ISP Flash
Microchip's 8-bit AVR-RISC based picoPower high performance microcontroller combines 32Kb ISP flash memory with read and write functions, 1024B EEPROM, 2Kb SRAM, 23 universal I/O lines, 32 universal working registers and three flexible timers / counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented serial 2-wire interface, a serial SPI port, a 10-bit A/D converter with 6 channels (8 channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator and five software selectable power saving modes. The processor operates between 1.8 and 5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz while balancing power consumption and processing speed.
In stock
SKU ATMEGA 328P-AUR

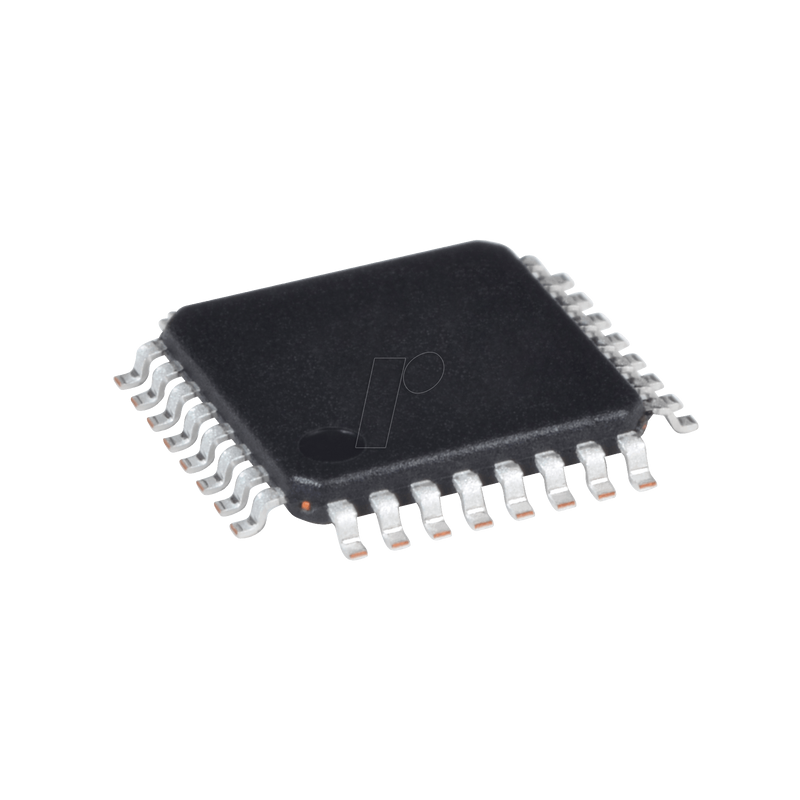

8-bit ATMega AVR microcontroller, 32KB, 20 MHz, TQFP-32 taped
MPN ATMEGA328P-AUR
Manufacturer MICROCHIP
€3.96
incl. 19% VAT · €3.33 excl. VAT
Package
TQFP-32
Specifications
General
Type
8-bit microcontroller
Technology
AVR® RISC
Model
ATmega328P
Design
Gurtware
Mounting form
TQFP-32
Specials
CPU clock
20 MHz
Implementation
Memory
32
RAM
2 kByte
EEPROM
1024 Bytes
I/O-Pins
23
8-bit Timer
2
16-bit Timer
1
PWM
6
Analog comparator
1
Interfaces
I²C
1
SPI
2
ODC
8
UART
1
Electrical values
Supply voltage
+1.8 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Packaging
Packaging
Gurtware
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
ATMEGA328P-AUR
Weight
0.021 kg
RoHS
conform
EAN/GTIN
9900002690661
HS-Code
85423190
