PIC16(L)F18855-57/18875-77
Fully equipped 28/40/44-pin microcontrollers
Description
The PIC16(L)F18856/76 microcontrollers feature analog, core-independent peripherals and communication peripherals, combined with extreme low-power (XLP) technology for a wide range of general-purpose and low-power applications. The family will be equipped with CRC/SCAN, Hardware Limit Timer (HLT) and Windowed Watchdog Timer (WWDT) to support customers who want to add security to their application. In addition, this family includes up to 28 KB of flash memory and a 10-bit ADC with calculation extension (ADC2) for automated signal analysis to reduce the complexity of the application.
In stock
SKU PIC16F18856-I/SP

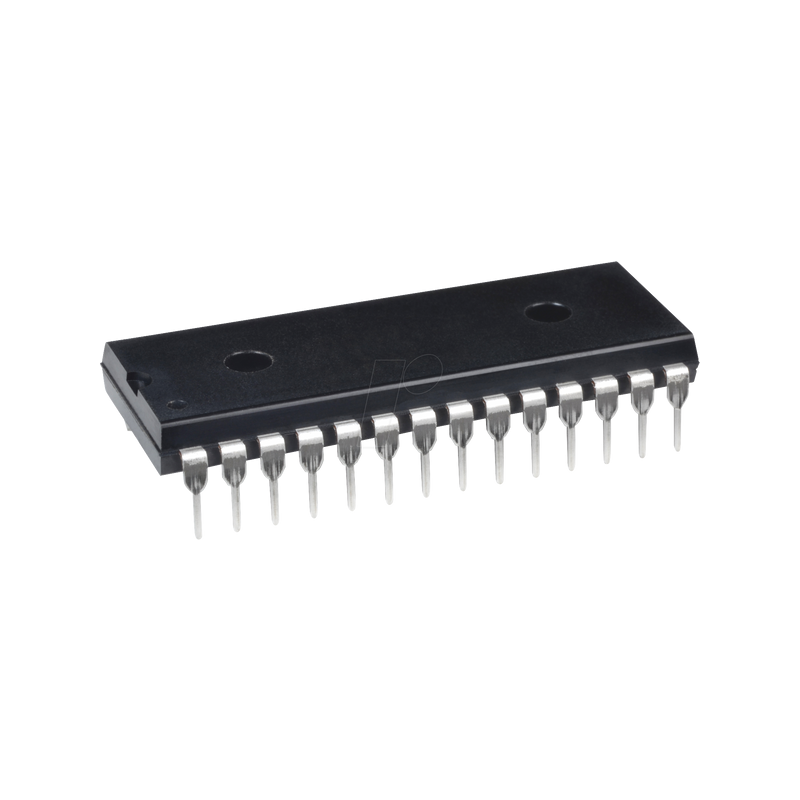

8-bit PIC microcontroller, 28 KB, 32 MHz, 2.3 - 5.5 V, DIP-28
MPN PIC16F18856-I/SP
Manufacturer MICROCHIP
€3.83
incl. 19% VAT · €3.22 excl. VAT
Package
DIP-28
Specifications
General
Type
PIC Controller
Technology
PIC® Flash
Model
PIC16F18856
Design
WWDT, BOR, HLT, CRC/SCAN
Mounting form
DIP-28
Specials
CPU clock
32 MHz
Protocoll
LIN
Implementation
Memory
28
RAM
2.048 kByte
EEPROM
256 Byte
I/O-Pins
25
8-bit Timer
3
16-bit Timer
4
PWM
5/2
Internal oscillator
32 MHz, 31 kHz
Analog comparator
2
Interfaces
I²C
2
SPI
2
ODC
24
I/O/USART
1
Electrical values
Supply voltage
+2.3 ... +5.5 VDC
Other
Temperature range
-40 ... +85
Manufacturer specifications
Manufacturer
MICROCHIP
Manufacturer ID
PIC16F18856-I/SP
Weight
0.003 kg
RoHS
conform
EAN/GTIN
9900002959935
HS-Code
85423190
