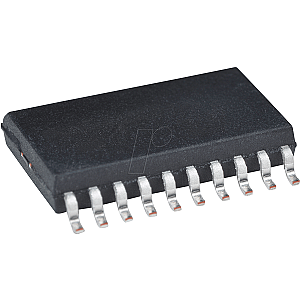

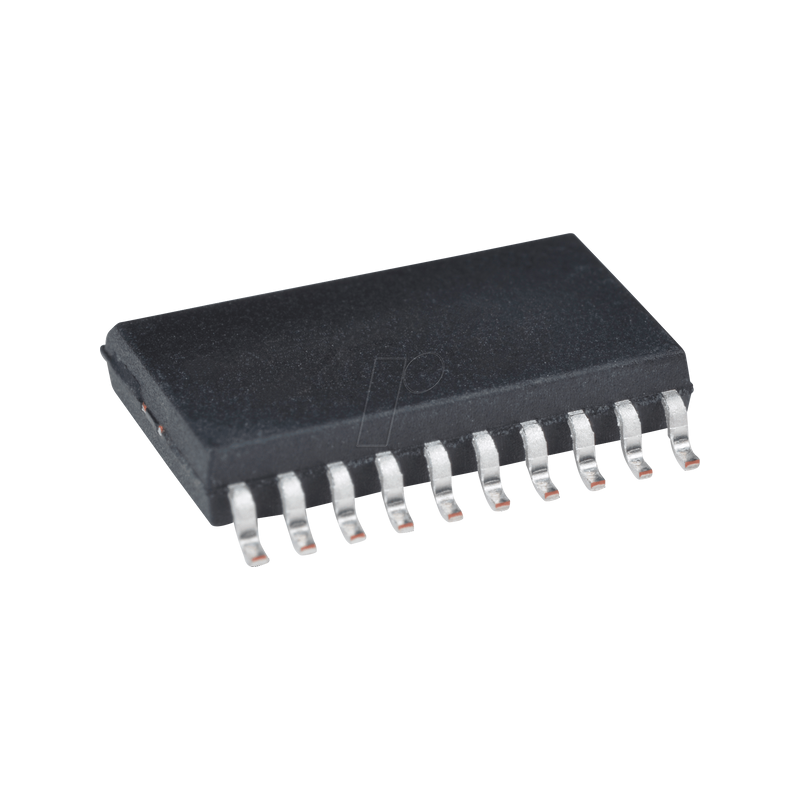

8-bit PICmicro microcontroller, 16 KB, 64 MHz, SO-20

20-Pin Flash Microcontrollers with XLP Technology

Description:
Introducing the nanoWatt XLP PIC18F1XK22 Flash microcontroller: not too big, not too small… just right! This new family of devices offer all of the advantages of the well recognized PIC18F High Performance MCUs; 8-bit, C compiler optimized architecture and an industry leading peripheral set now available in a low pin-count option. These new 20-pin products include a 16 MHz precision Internal Oscillator which can be used with the standard 4X PLL to produce 16 MIPS of performance (64 MHz @ 3V). Standard analog peripherals include 12 channels of 10-bit A/D, Dual Rail-Rail Comparators with improved input/output multiplexing and an on-chip selectable Fixed Voltage Reference. Digital peripherals include an Enhanced Capture/Compare/PWM (ECCP+) module with PWM steering and a Master Synchronous Serial Port (MI2C,SPI) module with software controllable address masking. These devices also feature the SR Latch mode which supports capacitive sensing applications. In addition to these peripherals, the devices feature several microcontroller monitors that provide for reliable operation including BOR (Brown Out Reset) with software enable, POR (Power On Reset) and an Extended WDT. The addition of nanoWatt XLP technology make these devices ideally suited for battery powered applications or designs where power consumption is constrained.

Features
- C Compiler optimized architecture
- 256 bytes data EEPROM
- Linear program memory addressing to 16 Kbytes
- Linear data memory addressing to 512 bytes

Extreme Low-Power Management PIC18LF1XK22 with nanoWatt XLP™ Technology
- Sleep mode: 50 nA, typical
- Watchdog Timer: 600 nA, typical
- Timer1 Oscillator: 800 nA @ 32 kHz, typical

Flexible Oscillator Structure
- Precision 16 MHz internal oscillator block:
- Factory calibrated to ± 1%
- Software selectable frequencies range of 31 kHz to 16 MHz
- 64 MHz performance available using PLL
- No external components required
- Four crystal modes up to 64 MHz
- Fail-Safe Clock Monitor
- Allows for safe shutdown if peripheral clock stops
- Two-Speed Oscillator Start-up

Special Microcontroller Features
- Operating voltage 1.8V- 5.5V (with low voltage option 1.8V-3.6V)
- Self-reprogrammable under software control
- Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Programmable Brown-out Reset (BOR)
- Extended Watchdog Timer (WDT) with on-chip oscillator and software enable
- In-Circuit Serial Programming™ (ICSP™) via two pins
- In-Circuit Debug via two pins

Peripheral Highlights
- 12 Ch. 10-bit Analog-to-Digital (A/D) Converter module:
- 2 rail-to-rail Analog Comparators module with:
- Voltage Reference module with:
- Programmable on-chip voltage reference (CVREF) module (% of VDD)
- Selectable Fixed voltage reference (FVR) with multiple reference voltages
- 17 I/O pins and 1 input only pin:
- High current sink/source 25 mA/25 mA
- Three external interrupt pins
- Four Timer modules:
- 3x 16-bit timers/counters with prescaler
- 1x 8-bit timer/counter with 8-bit period register, prescaler and postscaler
- Enhanced Capture/Compare/PWM (ECCP) module with PWM output steering:
- Programmable dead time
- Auto-shutdown and Auto-restart
- Master Synchronous Serial Port (MSSP) module with two modes of operation:
- 3-wire SPI (supports all 4 SPI modes)
- I2C™ Master and Slave modes (Slave mode with address masking)
- EUSART module
- Supports RS-232, RS-485 and LIN 2.0
- Auto-Baud Detect
- SR Latch (555 Timer) module with:
- Configurable inputs and outputs
- Supports mTouch™ capacitive sensing applications
