I2C bus interface RTC module
Overview
This module is an I2C bus interface-compliant real-time clock which includes a 32.768 kHz DTCXO. In addition to providing a calendar (year, month, date, day, hour, minute, second) function + a clock counter function, it provides an abundance of other functions including an alarm function, Wakeup timer function, time update interrupt function + 32.768 kHz output function. Thanks to the battery backup switchover function + the interface power supply input pin, RX8900 can support various power supply circuitries. C-MOS process for low current consumption, which enables long-term battery back-up.
Features:
In stock
SKU RX8900CE UA

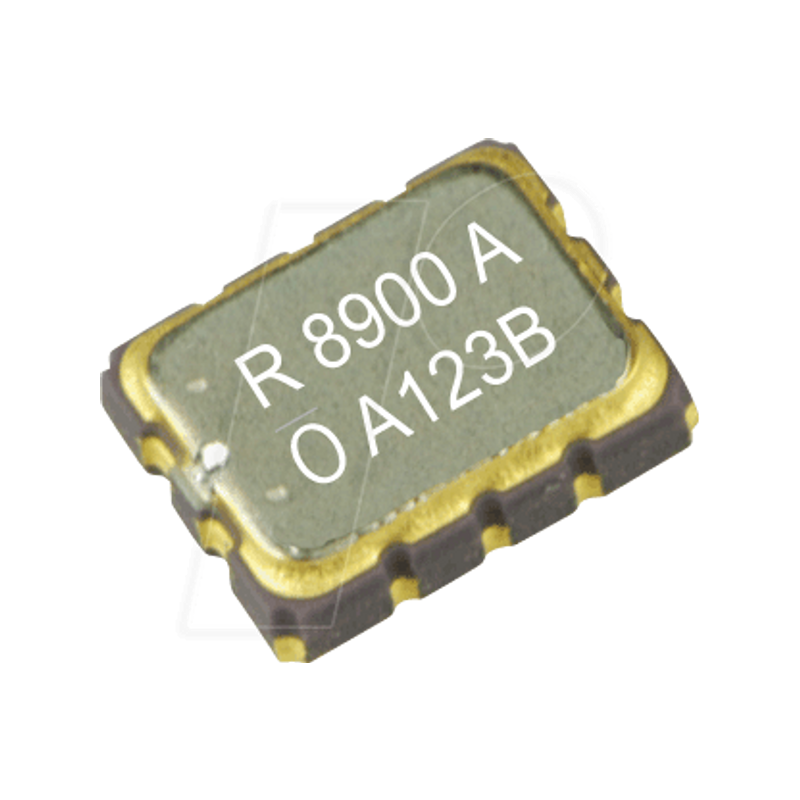

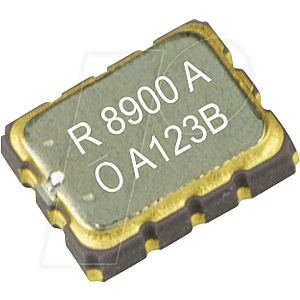

Serial interface RTC modules, 3.4ppm, I²C, SMT-3225-10
MPN RX8900CE UA
Manufacturer EPSON
€4.08
incl. 19% VAT · €3.43 excl. VAT
Package
SMT-3225-10
Specifications
General
Model
Real time clock
Type
Real time clock
Design
Clock/calendar function,Long timer function, alarm
Mounting form
SMT-3225-10
Electrical values
Supply voltage
1.1 ... 5.5 VDC
Input voltage
-0.3 - +6.5 VDC
Power consumption
300 nA
Frequency tolerance
3.4 ppm
Other
Temperature range
-40 ... +85
Measuring range
Frequency
32.768 kHz
Implementation
Internal oscillator
Integrated
Manufacturer specifications
Manufacturer
EPSON
Manufacturer ID
RX8900CE UA
Weight
0.001 kg
RoHS
conform
EAN/GTIN
9900002626721
HS-Code
91149090
